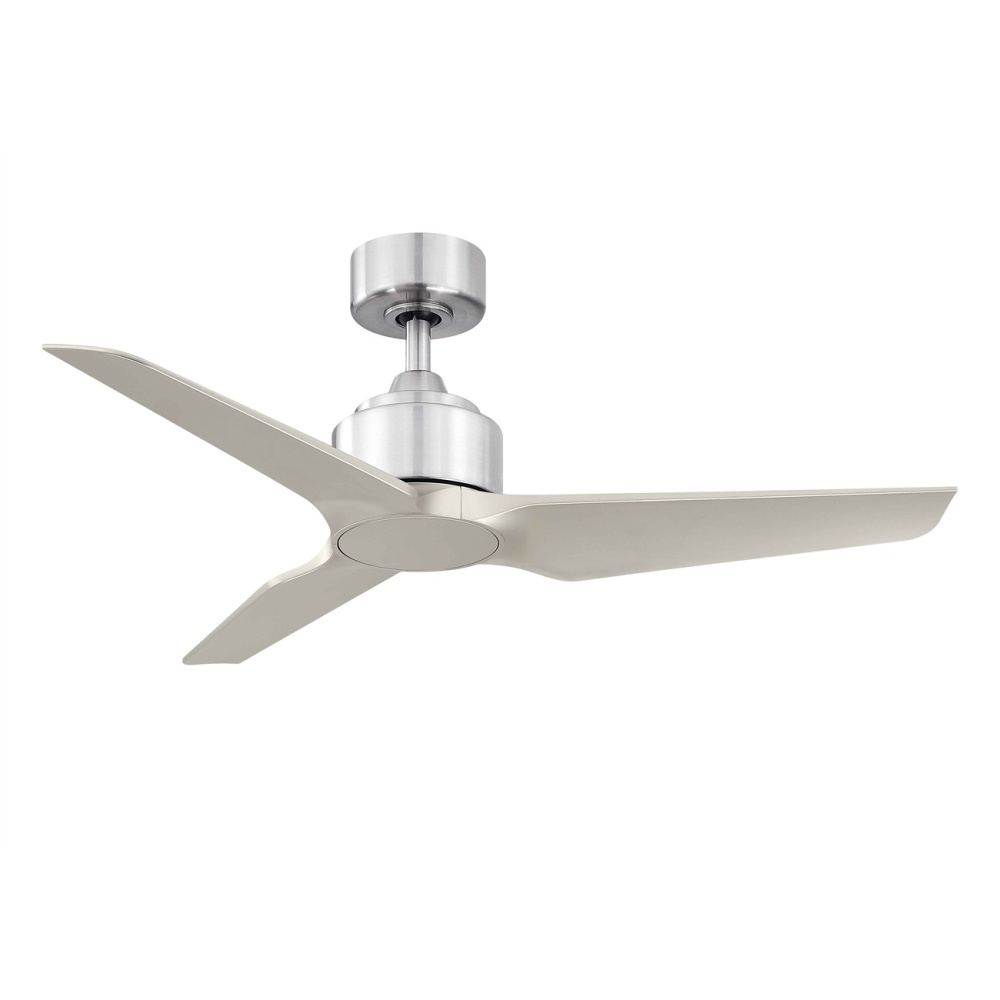

The TriAire Custom by Fanimation fits any style and location. With eight different blade sweeps in multiple finishes, you can create the TriAire Custom that fits your space. This wet rated ceiling fan has a 31 speed DC motor. LED with CCT Select Light kit, blades and motor sold separately. This ceiling fan is wet rated for indoor or outdoor use. It can be controlled using the Fanimation Wi-Fi fanSync application.
Standard Information
Category:
Fans
Subcategory:
Ceiling Fans
Finish:
Nickel
Option:
Energy Efficient
Outdoor
Damp Rated
Refinement Options
Category:
Fan-Multi
Finish:
Brushed Nickel
Option:
Energy Efficient
Outdoor
Family:
TriAire Custom
Voltage:
120 V
Air Flow CFM:
6765
Air Flow Efficiency:
230
Blade Pitch:
14
Canopy:
5.75 Dia x 2.57 H
Harmonized Codes:
8414.51.3000
Light Kit Included:
No
Motor Size:
158 X 22
Motor Type:
DC
Ship Carton Height:
8.35
Ship Carton Length:
15.94
Ship Carton Width:
8.86
Ship Weight:
13.6
Sold By:
Each
Warranty:
1 Year
Weight:
12.19
Airflow Efficiency Low:
357
Airflow Efficiency Medium:
503
Avg Airflow Efficiency:
247
Avg CFM Energy:
4860
Avg Energy Use:
20
Avg Estimated Yearly Energy Cost:
6
Avg Estimated Yearly Energy Cost on HIGH:
8
Cap Included:
Yes
Carton Cubic Feet:
0.6824
Case Height:
8.35
Case Length:
15.94
Case Quantity:
1
Case Weight Pounds:
13.6
Case Width:
8.86
CEC Uploaded:
Yes
Ceiling To Blade Edge:
12.92
Ceiling To Bottom (No Light Kit):
12.42
Ceiling To Bottom (With Light Kit):
14.62
CFM Low:
821
CFM Medium:
4222
Country of Origin:
China
Current Draw High:
0.42
Current Draw Low:
0.04
Current Draw Medium:
0.13
DOE Classification:
LSSD
DOE-FTC Uploaded:
Yes
Downrod Length:
4.5
Energy Efficient:
Yes
Exempt from DOE Procedure:
No
Fan Energy Star 4:
No
Housing Diameter:
7.09
Included Control:
TR305
Included Control Type:
Handheld
Indoor:
Yes
Leadwire:
80
Location Rating:
Damp Rated
Max Ceiling Slope:
27
Max Length:
60
Max Width:
60
Motor Finish Method Type:
Plated
Motor Reversible:
Yes
Number of Blades:
3
Number Of Speeds:
16
Outdoor:
Yes
Regulated Product:
Yes
Reverse Switch Location:
Control
RPM High:
161
RPM Low:
28
RPM Medium:
98
Safety Rating:
UL Approved, cUL Approved
Voltage Cycles:
60 Hz
Watts High:
29
Watts Low:
2
Watts Medium:
8
CONTROL: Includes a Wi-Fi receiver and TR305 handheld remote with two 3V CR2032 batteries
FINISH: Brushed Nickel

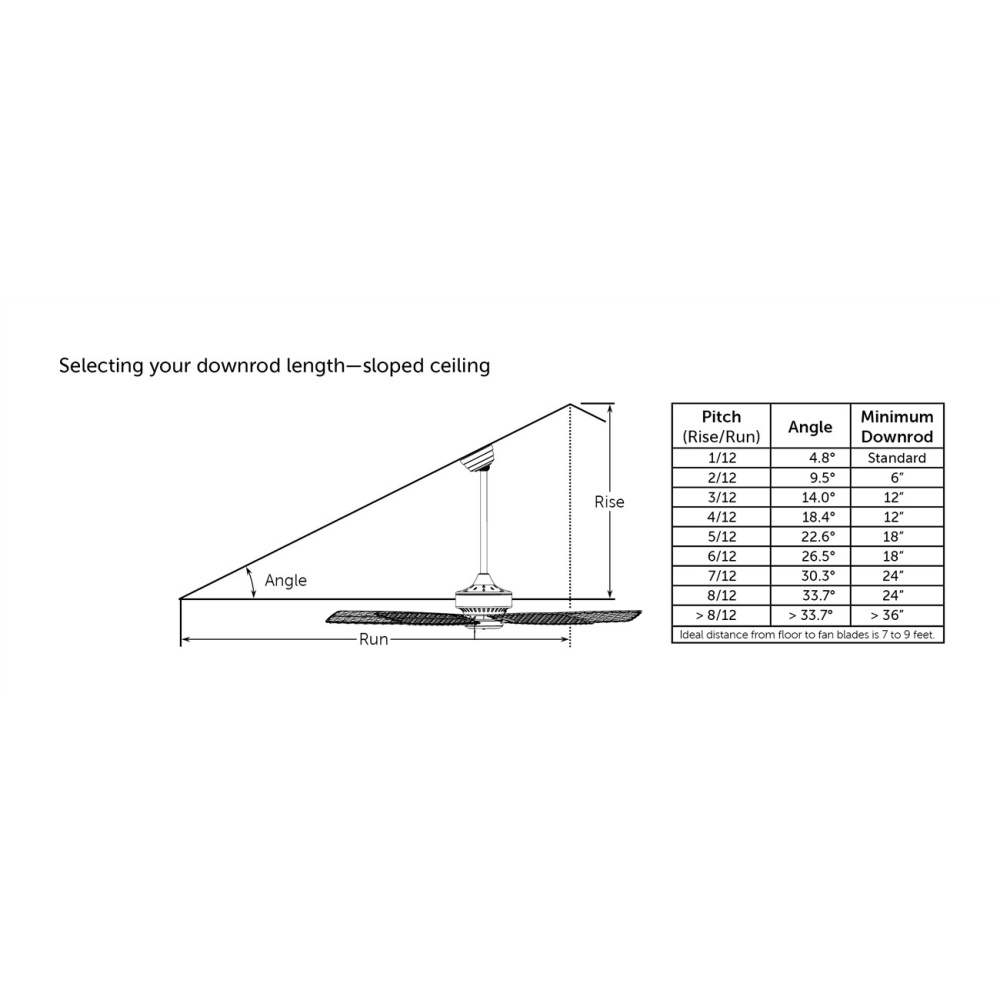

INSTALLATION: Mounts to flat or minimally sloped ceilings with the included 1-in diameter x 4.5-in length downrod - optional downrods are available in lengths up to 72 inches to adjust the fans height to 7ft - 9ft from the floor, ensuring maximum airflow
LIGHTING: 18-Watt dimmable LED light kit with Correlated Color Temperature (CCT) Select technology and opal frosted glass available for added versatility (light kit sold separately)
LOCATION: This ceiling fan is Wet Rated for use in indoor and outdoor spaces, making it ideal for any indoor room or spaces like gazebos, patios, pergolas, or porches
POWER: The 16-speed, quiet and energy efficient DC motor can provide airflow up to 6,765 CFM
Push buttons control 16 variable fan speeds, infinite light levels, color temperature, fan/light timer, powering on/off, and fresh air, reverse, home away, safe exit modes
SAVINGS: Features a reversible motor, allowing you to switch the direction of your fan's rotation and create energy savings
TECHNOLOGY: Includes fanSync Wi-Fi connectivity, allowing the fan to pair with most smart home devices
