Product Overview

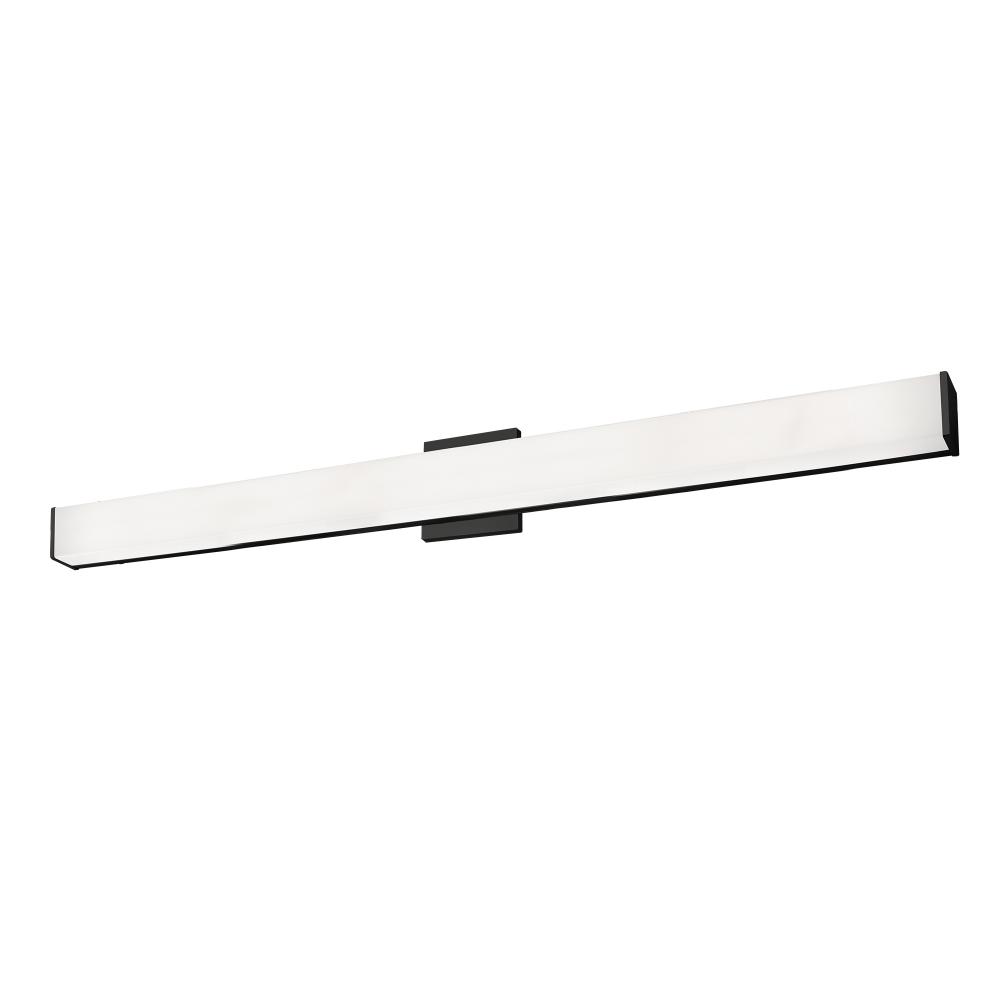

An extruded square diffuser surrounds the LED source of the geometric vanity fixture and gently spreads light. Enclosed at the ends by two thick caps the design is characterized by minimal details and clever features. During installation the lamp assembly may slide on the mounting track to allow for ideal positioning. Adding to the versatile function are the multiple fixture lengths and mounting orientations. Optional installation without backplate for smaller junction boxes.

Standard Information

Category:

Bathroom Fixtures

Subcategory:

Vanity Lights

Finish:

Black

Option:

ADA Compliant

Title 24

Damp Rated

Refinement Options

Category:

Vanity Lights

Finish:

Black

Option:

ADA Compliant

Title 24

Family:

Jane

Voltage:

120 V

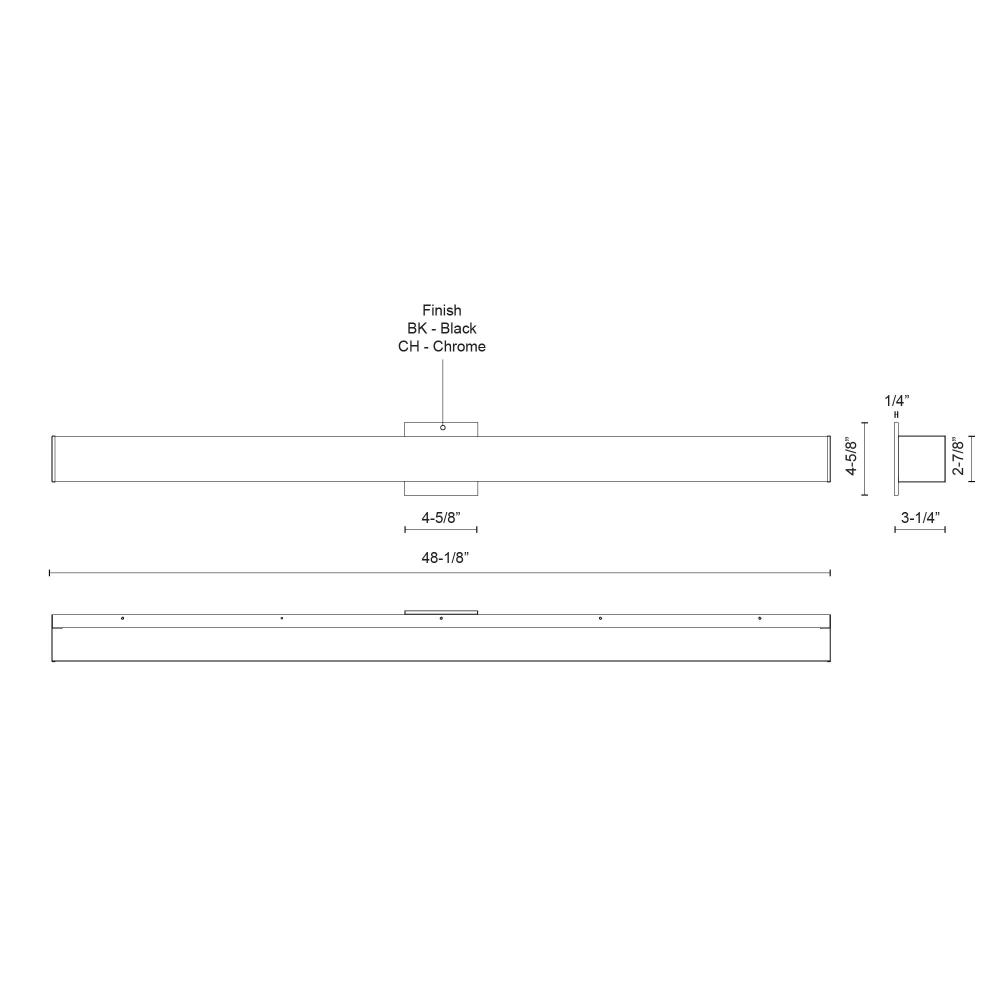

Blade Span:

48.13

Bulb Hours:

50000

Canopy:

4.63 W x 4.63 H x 0.25 E

Extension:

3.25

Kelvin:

3000

Material:

Aluminum, Steel, Acrylic

Ship Carton Height:

5.13

Ship Carton Length:

50.75

Ship Carton Width:

5.88

Ship Weight:

5.07

ADA Compliant:

Yes

Bulb CRI:

90

Canopy Included:

Yes

Country of Origin:

China

Delivered Lumens:

417

Diffuser Material:

White Acrylic

Dimming:

100% - 10%

Dimming Type:

ELV Compatible (Optional, Not Included)

Height From Center:

24

Illumination Direction:

Front

Light Source:

AC LED Module

Location Rating:

Damp Rated

Max Wattage:

59 W

Mounting:

Wall All Orientation

Safety Rating:

ETL Approved

Title 24:

Yes

Total Lumens:

4760

Volume:

0.025088
