4" Contractor Series Can-less LED Wafer Downlight with Regressed Baffle, Selectable CCT, Matte : 1JA4ZC

Return to Catalog

Part Number: 1JA4ZC / Vendor ID #: 104

4" Contractor Series Can-less LED Wafer Downlight with Regressed Baffle, Selectable CCT, Matte

$180.50

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 1 items available.

Dimensions

Height: 0.63"

Width: 5.13"

Info & Guides

Product Overview

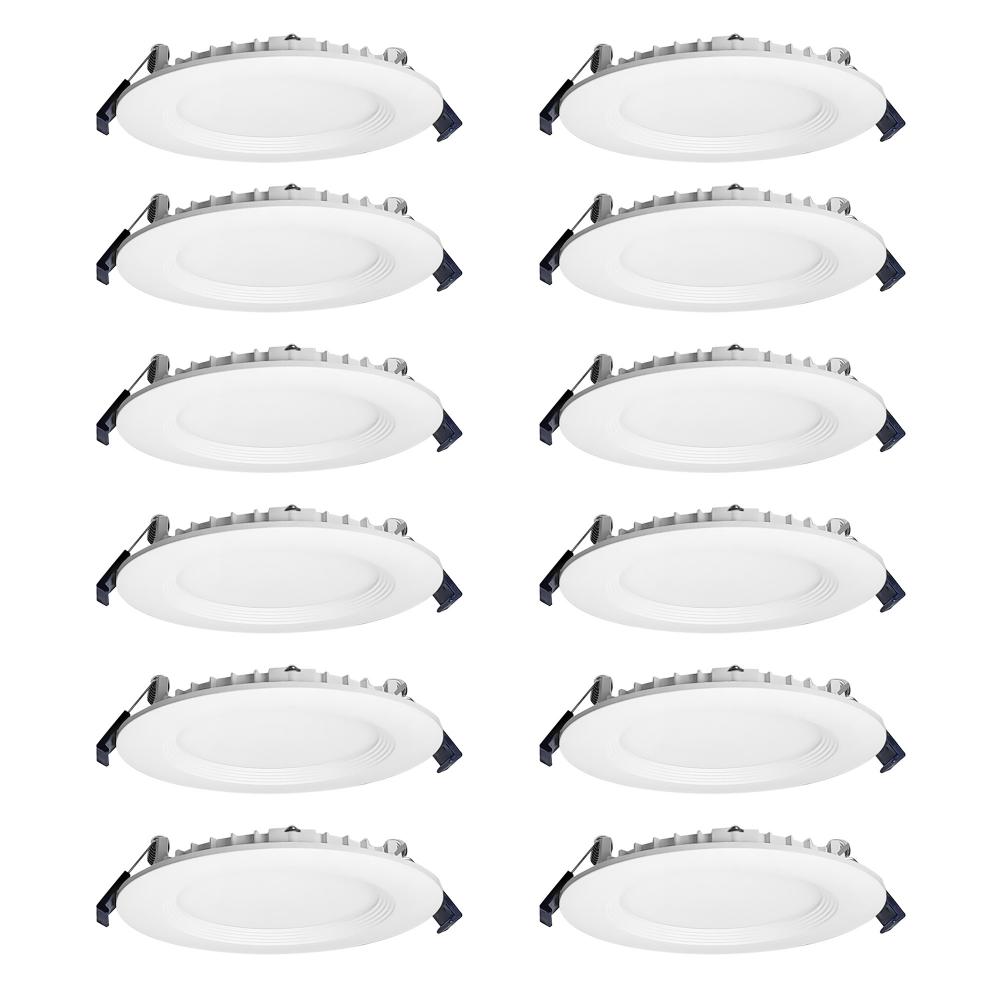

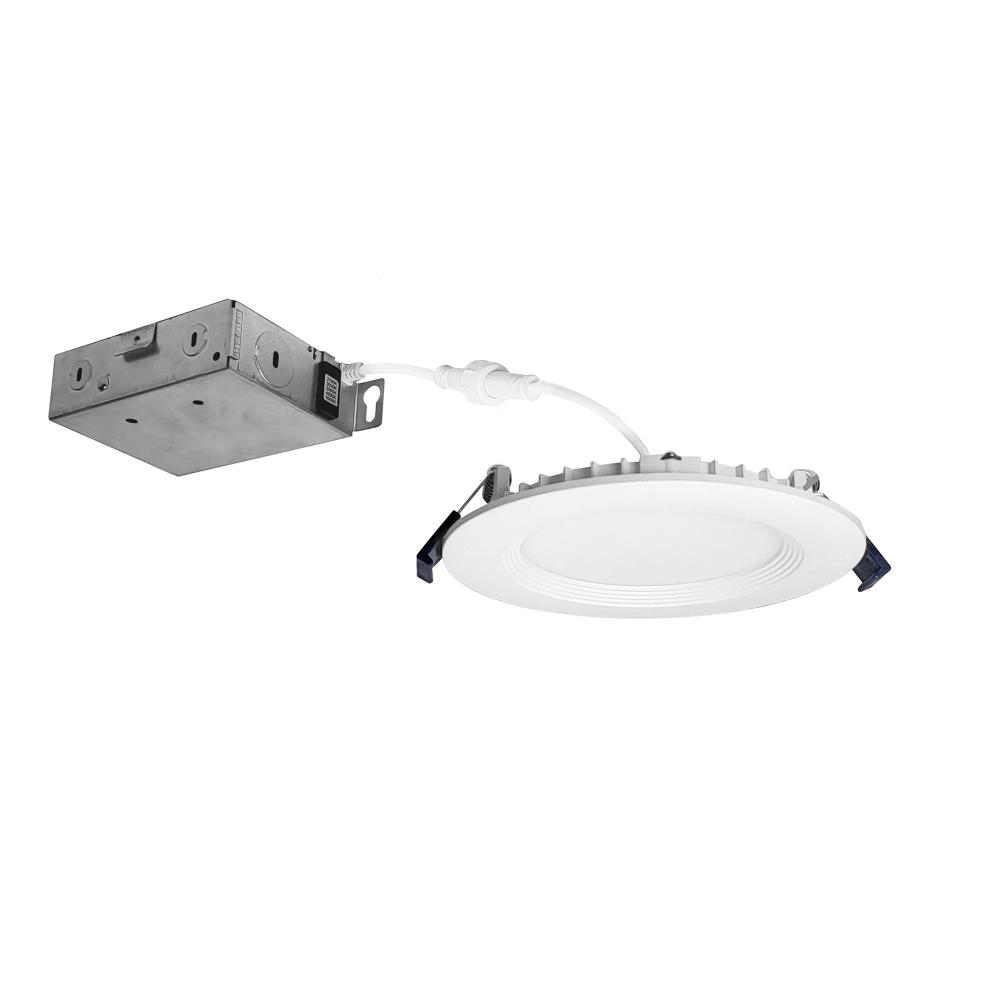

4" Can-less LED recessed downlights are designed for easy installation into new construction or remodel applications. Each downlight includes an Selectable CCT switch located on the junction box. The slim wafer design makes the fixtures ideal for shallow plenums with a regressed baffle trim appearance. Contractor Series are sold in bulk packs (Pack of 12).
Input Voltage: 120VAC
Lumens / Wattage: 750lm / 10W
Color Temperature: Selectable CCT (27K/30K/35K/40K/50K)
Color Rendering Index: 90+ CRI
Dimming: Triac or ELV
Finish: Matte Powder White
Accessories: New construction frame-ins ordered separately (NF-R246 or NFC-R430)
Emergency: Remote emergency battery ordered separately (NEPK-20LEDUNV)
Listing: cETLus Listed for Wet Locations

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Option:

Title 24

Refinement Options

Category:

Recessed

Product Line:

CS03

Est. Shipping Wt.:

Length:

5.125

Lumens / Light Output:

750W

Ship Carton Height:

9.875

Ship Carton Length:

13.5

Ship Carton Width:

6.125

Weight:

1.25

CCT:

Selectable CCT (27K / 30K / 35K / 40K / 50K)

CEC Database:

CEC Item Number:

NCSC-R4W2TW*****

CEC Substitute Item:

NCSC-R4D1TWMPW

Contains Battery:

Country of Origin:

CHN

CRI:

DLC Listed:

Master Box H:

Master Box L:

Master Box Qty:

Master Box W:

Master Box Wt.:

Product Family:

Contractor

Safety Listing:

cETLus

Wattage:

10W

15.9
