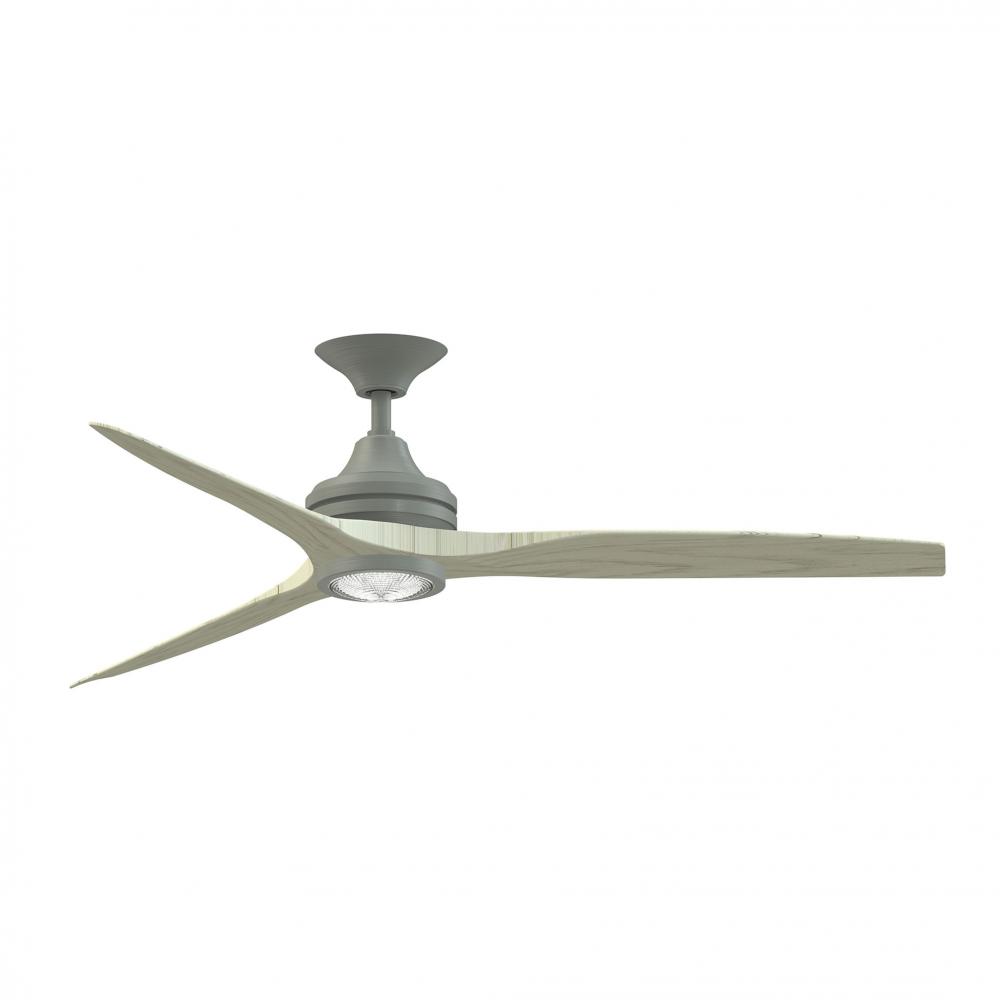

The Spitfire Custom features an exquisite three bladed design with many rich finish offerings to choose from. It is available in a 48 or 60 inch blade sweep and features an optional LED light kit. Handheld remote included. *Damp rated for indoor or outdoor use. *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use
Standard Information
Category:
Fans
Subcategory:

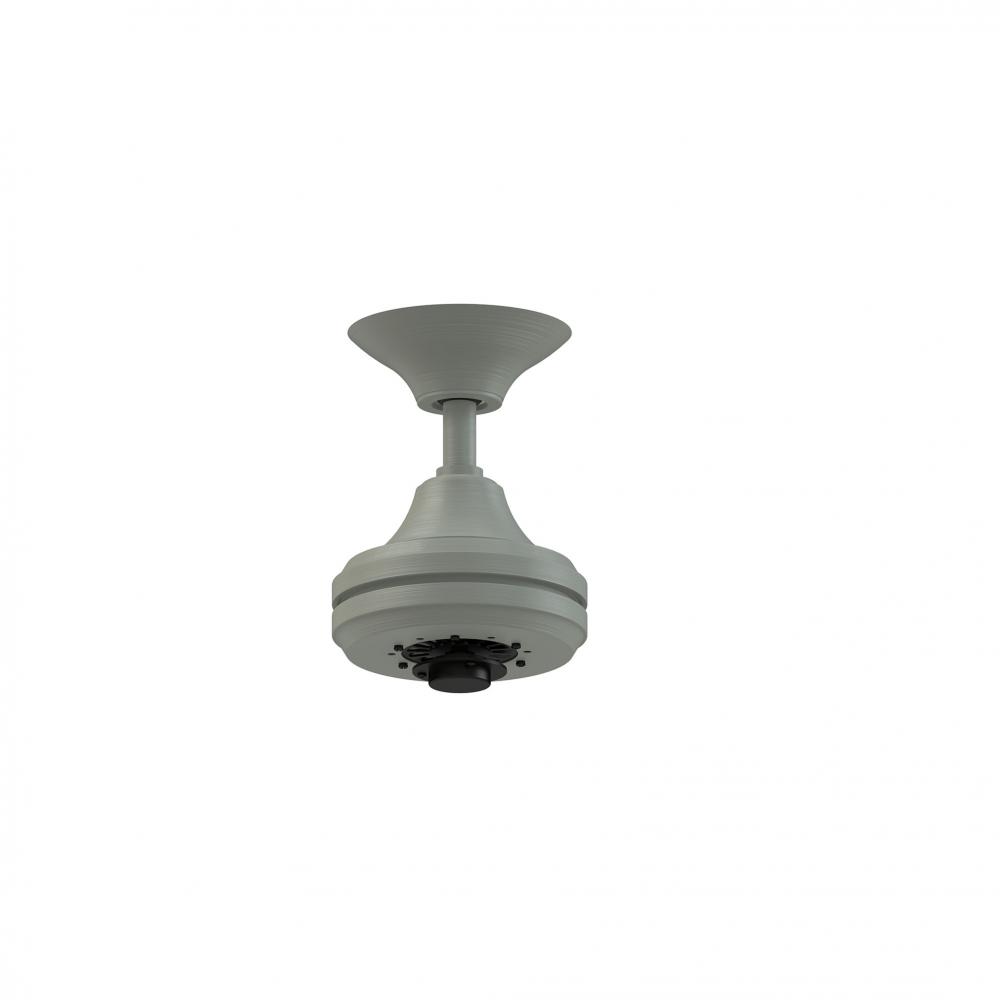

Fan Motor Without Blades
Finish:
Black
Miscellaneous
Refinement Options
Category:
Fan-Multi
Finish:
Antique Graphite
Family:
Spitfire
Voltage:
120 V
Air Flow CFM:
5164
Air Flow Efficiency:
72
Canopy:
7.09 Dia x 2.2 H
Harmonized Codes:
8414.51.3000
Light Kit Included:
No
Motor Size:
188 x 25
Motor Type:
AC
Ship Carton Height:
10.94
Ship Carton Length:
14.37
Ship Carton Width:
10.43
Ship Weight:
18.74
Sold By:
Each
Warranty:
Limited Lifetime Warranty
Weight:
17.42
Airflow Efficiency Low:
132
Airflow Efficiency Medium:
101

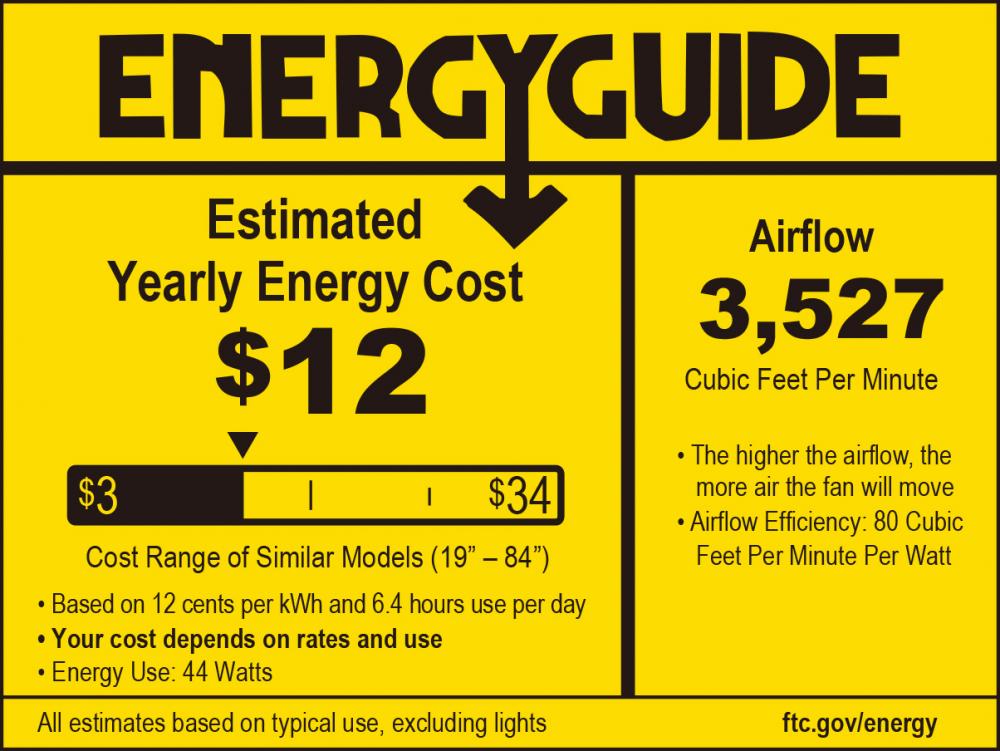

Avg Airflow Efficiency:
80
Avg CFM Energy:
3527
Avg Energy Use:
44
Avg Estimated Yearly Energy Cost:
12
Avg Estimated Yearly Energy Cost on HIGH:
20
Cap Included:
No
Carton Cubic Feet:
0.9489
Case Height:
10.94
Case Length:
14.37
Case Quantity:
1
Case Weight Pounds:
18.74
Case Width:
10.43
CEC Uploaded:
Yes
Ceiling To Blade Edge:
12
Ceiling To Bottom (No Light Kit):
12
Ceiling To Bottom (With Light Kit):
13.71
CFM Low:
1526
CFM Medium:
3280
Country of Origin:
China
Current Draw High:
0.6
Current Draw Low:
0.24
Current Draw Medium:
0.4
DOE Classification:
LSSD
DOE-FTC Uploaded:
Yes
Downrod Length:
4.5
Exempt from DOE Procedure:
No
Fan Energy Star 4:
No
Housing Diameter:
8.07
Included Control:
TR500
Included Control Type:
Handheld
Leadwire:
80
Location Rating:
Damp
Max Ceiling Slope:
19
Max Length:
60
Max Width:
60
Motor Finish Method Type:
Painted
Motor Reversible:
Yes
Number Of Speeds:
3
Regulated Product:
Yes
Reverse Switch Location:
Motor Housing
RPM High:
198
RPM Low:
66
RPM Medium:
124
Safety Rating:
UL Approved, cUL Approved
Voltage Cycles:
60HZ
Watts High:
72
Watts Low:
12
Watts Medium:
32
3 Speed Ac Motor With Reverse Switch, Fan Speed, Light Controls And Sleep Timer Features
5227 Cfm On High
Limited Lifetime Warranty
Set Of (3) Damp Rated Blades With Multiple Finishes Available And 18 Watt Led Light Kit Available (sold Separately)
Tr500 Handheld Remote With 23a Battery Included
Wifi Or Bluetooth Compatible (required Controls Sold Separately)
