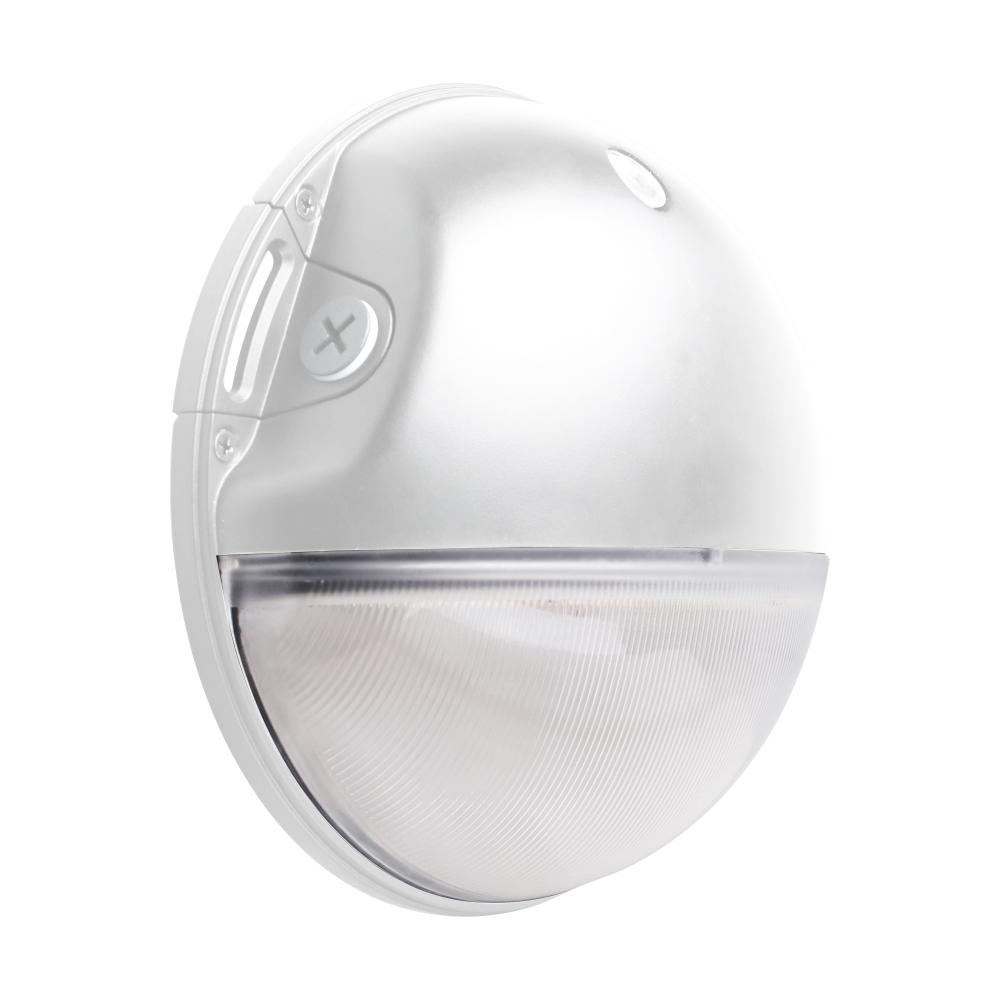

LED Small Round Wall Pack; 20W; CCT Selectable; Bypassable Photocell; 120-277 Volt; White Finish
$84.50
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
Manufacturer has 13 items available.
Dimensions
Height: 8.70"
Width: 8.70"
Product Overview
LED Small Round Wall Pack; 20W; CCT Selectable; Bypassable Photocell; 120-277 Volt; White Finish
Standard Information
Category:
Exterior
Sconces
Subcategory:
Wall Lights
Outdoor Wall Lights
Finish:
White
Style:
Contemporary
Traditional
Modern
Option:
LED
Prop 65
Lumens:
1601-2600
Kelvin:
4001-4500
Refinement Options
Category:
Wall Pack
Sub Category:
Mini
Style:
Modern and Contemporary
Additional Info:
UV stabilized powder coated finish
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm to Cool White
Diameter:
8.699999999999999
Dimmable:
Yes-Dimmable
Each Height:
3.62
Each Length:
8.94
Each Width:
8.94
Lumens:
2600L-2800L
Tariff Code:
9405.42.6000
Warranty:
5 Year Limited - Fixtures
Air Tight:
Yes
Amps:
0.167-0.072A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
100
B_U_G_Rating:
B1-U3-G2
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Closet Rated:
No
Connection:
Direct Wired
Country Of Origin:
Vietnam
CRI:
80+
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V Dimming Only
DLC Classification:
Premium
DLC Primary Use:
Outdoor Non-Cutoff and Semi-Cutoff Wall-Mounted Area Luminaires
Each Cube:
0.1674
Each Quantity:
1
Efficacy:
130.00/135.00/140.00 LPW
FCC Compliant:
Yes
Feature 1:
DLC Premium
Feature 2:
Integrated Bypassable Photocell
Feature 3:
CCT Selectable
Feature 4:
UV Stabilized Powder Coated Finish
Feature 5:
IP65 Rated
Feature 6:
2.5KV Surge Protection
Feature 7:
0-10V Dimmable
Finish Family:
White
Fixture shape:
Round
Flicker Free:
Yes
Has Driver:
Yes
Has Emergency Battery:
No
HID Equiv:
100W
Incandescent Equivalent:
150W
Indoor Outdoor:
Outdoor
IOT Enabled:
No
IP Rating:
IP65
JA8 Compliant:
No
Long Description:
SATCO NUVO's 65-752 CCT-selectable compact wall pack is the latest expansion in the popular line of Satco's commercial luminaires. This 20-watt white wall pack is just under nine inches in diameter, with superior light output and a convenient, easy
Material:
Die-Cast Aluminum
Mounting Procedure:
Wall
Operating Frequency:
50/60Hz
Operating Temp:
-30C (-22F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Color Box
Photocell:
Yes - Bypassable
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
3
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's CCT-selectable compact wall pack is the latest expansion in the popular line of Satco's commercial luminaires. This 20-watt white wall pack is just under nine inches in diameter, with superior light output and a convenient, easy to use
