Product Overview

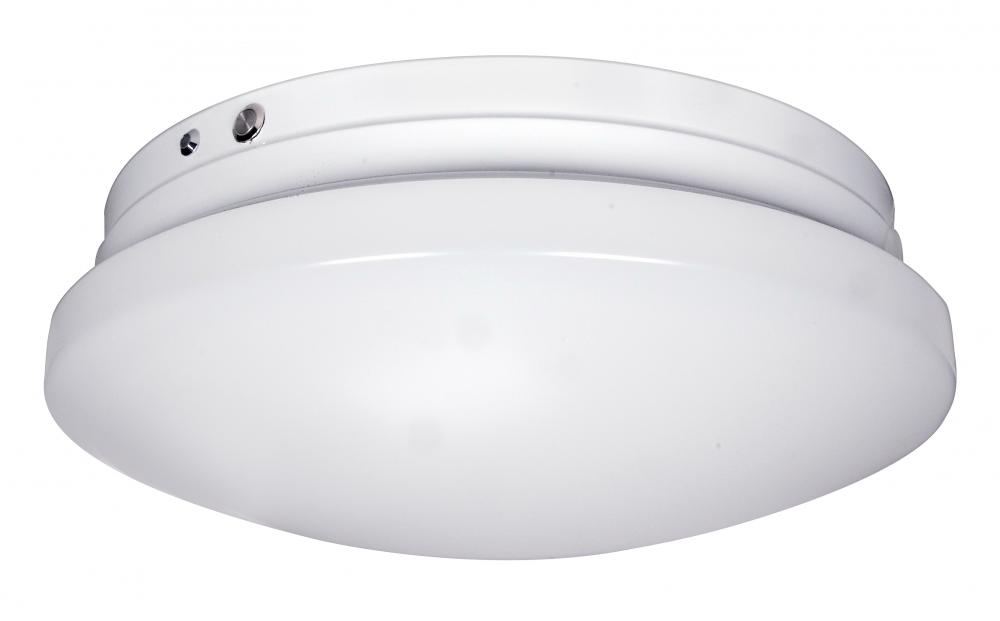

LED Flush mount fixture; 14 in.; Diameter; 20W integrated LED module; 3000K; 120/277V

Standard Information

Category:

Flush Mounts

Subcategory:

Bowl Flush Mounts

Finish:

White

Option:

LED

Prop 65

Refinement Options

Category:

Close-to-Ceiling

Sub Category:

Utility

Style:

Utility

Additional Info:

Not suitable for damp locations if used with optional battery back-up module. Optional battery back-up (Satco model S9299 for 120V or S9780 for 277V)

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm White

Diameter:

14

Dimmable:

Yes-Dimmable

Each Height:

15

Each Length:

5.63

Each Width:

15

Lumens:

1300L

Tariff Code:

9405.11.8020

Warranty:

5 Year Limited - Fixtures

Amps:

0.167-0.072A

ANSI Base:

Integrated

CA Prop-65:

Lead

CCT Selectable:

No

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Battery

Country Of Origin:

China

CRI:

90+

Dimmable Down To:

100 to 20 percent

Dimmable Function:

120V only

Dimming Type:

Forward Phase or Reverse Phase

Each Cube:

0.7331

Each Quantity:

1

Efficacy:

65.00 LPW

FCC Compliant:

Yes

Finish Family:

White

Fixture shape:

Round

Incandescent Equivalent:

100W

Indoor Outdoor:

Indoor

JA8 Compliant:

No

Mounting Procedure:

Ceiling

Operating Temp:

-17C (+1.4F) to +45C (+113F)

Order In Multiples Of:

1

Pack Type:

Color Box

Power Factor:

0.97

Quantity In Pack:

1

Replaceable Light Source:

No

RoHS Compliant:

Yes

Safety Listing:

cETLus - Listed

SDS class:

LED_Fixture

Short Description:

14" WH ACRYLIC 120/277V

Sloped Ceiling Compatible:

Yes

Specification Notes:

Dimming range: 20% - 100%

Temperature (CCT):

3000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Wattage Selectable:

No

Weight Lb.:

2.85
