Product Overview

LED Canopy Fixture; 25 Watt; CCT Selectable; White Finish

Standard Information

Category:

Flush Mounts

Subcategory:

Other Flush Mounts

Option:

LED

Prop 65

Lumens:

3300+

Kelvin:

4001-4500

Refinement Options

Category:

Surface Mount

Sub Category:

Canopy Fixture

Style:

Utility

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm to Cool White

Diameter:

10.04

Dimmable:

Yes-Dimmable

Each Height:

5.51

Each Length:

11.81

Each Width:

11.81

Lumens:

3718L/3975L/3766L

Tariff Code:

9405.11.6020

Warranty:

5-Years

Amps:

0.208-0.090A

ANSI Base:

Integrated

BAA Compliant:

No

Beam Angle:

150

B_U_G_Rating:

B2-U3-G1

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Country Of Origin:

Vietnam

CRI:

80+

Dimmable Function:

0-10V Dimming

DLC Classification:

Premium

DLC Primary Use:

Parking Garage Luminaires

Each Cube:

0.4447

Each Quantity:

1

Efficacy:

148.72/159.00/150.64 LPW

FCC Compliant:

Yes

Feature 1:

CCT Selectable (3000K, 4000K, 5000K)

Feature 2:

0-10V Dimming

Feature 3:

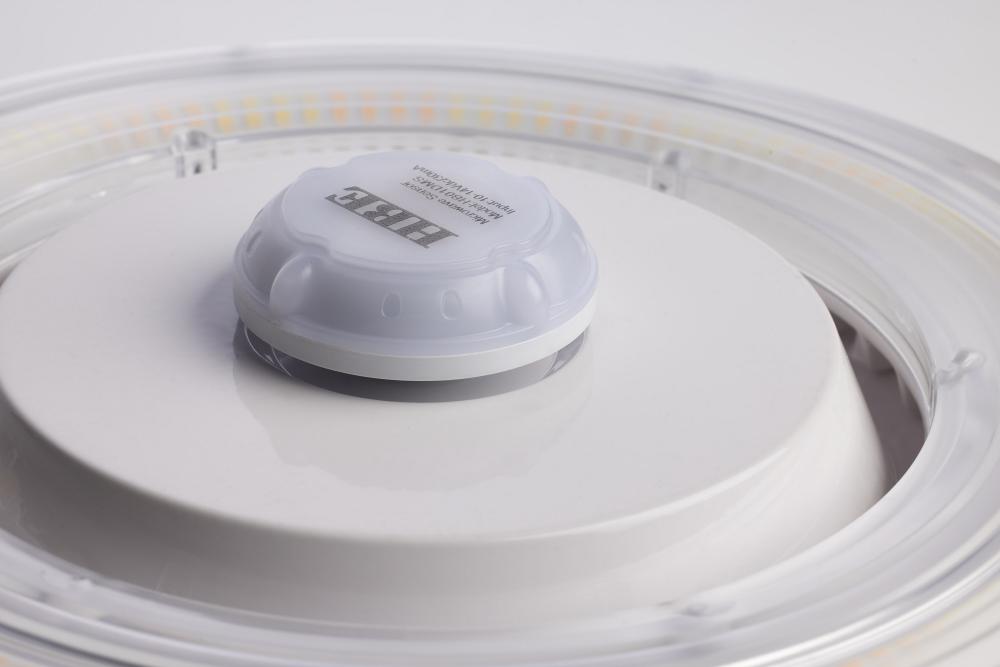

Integrated Sensor Port

Feature 4:

Ceiling and Pendant Mounting

Feature 5:

IK08 Impact Rated

Feature 6:

50,000 Functional Life

Feature 7:

White Finish

Feature 8:

FCC and RoHS compliant

Finish Family:

White

Has Driver:

Yes

Impact Rating (IK):

IK10

Incandescent Equivalent:

125W

Indoor Outdoor:

Outdoor

IP Rating:

IP65

JA8 Compliant:

No

Lens Material:

Polycarbonate (PC)

Long Description:

SATCO NUVO's 65-623R1 LED Round Canopy Light offers durable and versatile lighting with ColorQuick technology for easy color temperature selection. With an integrated sensor port, adding microwave or PIR sensors is effortless. This canopy light is made

Material:

Die-Cast Aluminum

Mounting Procedure:

Ceiling Pendant

Operating Frequency:

50/60Hz

Operating Temp:

-40C (-40F) to +45C (+113F)

Order In Multiples Of:

1

Pack Type:

Box

Photocell:

Optional Add-On

Power Factor:

>0.9

Quantity In Pack:

1

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO's LED Round Canopy Lights are the perfect combination of durability and versatile functionality. With ColorQuick technology, easily select 3000K, 4000K, or 5000K CCT during installation. Also, these canopy lights feature an integrated sensor

Safety Listing:

cULus - Certified

SDS class:

LED_Fixture

Short Description:

25W LED CANOPY W/ SENSOR PORT

Specification Notes:

UV Stabilized Powder Coated Finish

Temperature (CCT):

3000K/4000K/5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Total Harmonic Distortion:

<20%

Wattage Selectable:

No

Weight Lb.:

4.41
