Product Overview

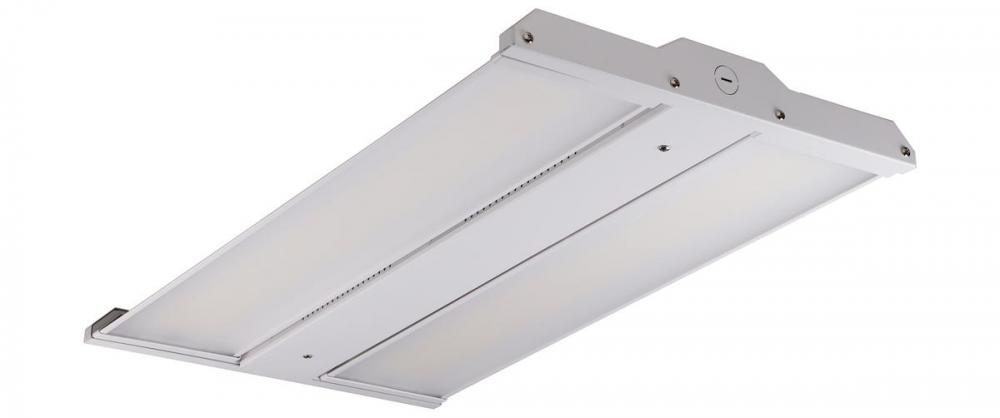

LED Adjustable High bay; 220 Watt; 4000K; White Finish; 120-277 Volt

Standard Information

Category:

Utility

Subcategory:

Other Utility

Finish:

White

Style:

Traditional

Option:

LED

Prop 65

Refinement Options

Category:

Hi-Bay

Sub Category:

Linear

Style:

Utility

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Cool White

Dimmable:

Yes-Dimmable

Each Height:

4.72

Each Length:

30.12

Each Width:

17.52

Length:

26

Lumens:

30394L

Tariff Code:

9405.11.6020

Warranty:

5 Year Limited - Fixtures

Wire Length:

5.91

Amps:

1.833-0.794A

ANSI Base:

Integrated

BAA Compliant:

No

Beam Angle:

100

CA Prop-65:

Lead

CCT Selectable:

No

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Hardwire

Country Of Origin:

China

CRI:

80+

Dimmable Down To:

100 to 20 percent

Dimmable Function:

0-10V Dimming Only

Each Cube:

1.4414

Each Quantity:

1

Efficacy:

138.15 LPW

FCC Compliant:

Yes

Feature 1:

Fully independent articulating light panels

Feature 2:

Full suite of accessories: PIR and microwave sensors, surface and pendant mount kits, and an emergency battery backup unit

Feature 3:

Voltage Range: 120-277V

Feature 4:

1-10V dimming

Feature 5:

IP40 rated

Finish Family:

White

IC Rated:

Yes

Incandescent Equivalent:

450W-800W

Indoor Outdoor:

Indoor

IP Rating:

IP40

JA8 Compliant:

No

Lens Finish:

Frost

Lens Material:

Polycarbonate (PC)

Long Description:

The nature of a traditional high bay is to put out as much light in the widest range possible. On paper this sounds like a good plan, but in form and function it can be quite literally blinding and inefficient. Whether you're trying to reach that top b

Material:

Aluminum Alloy

Mounting Procedure:

Ceiling

Operating Frequency:

50-60Hz

Operating Temp:

-40C (-40F) to +50C (+122F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

0.9

Quantity In Pack:

1

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

The nature of a traditional high bay is to put out as much light in the widest range possible. On paper this sounds like a good plan, but in form and function it can be quite literally blinding and inefficient. Whether you're trying to reach that top b

Safety Listing:

cULus - Certified

SDS class:

LED_Fixture

Short Description:

220W LED ADJUSTABLE HIGH BAY

Temperature (CCT):

4000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Total Harmonic Distortion:

20%

Wattage Selectable:

No

Weight Lb.:

10.36

Wire Quantity:

5

Wire Temp Rating:

105C (221F)
