Product Overview

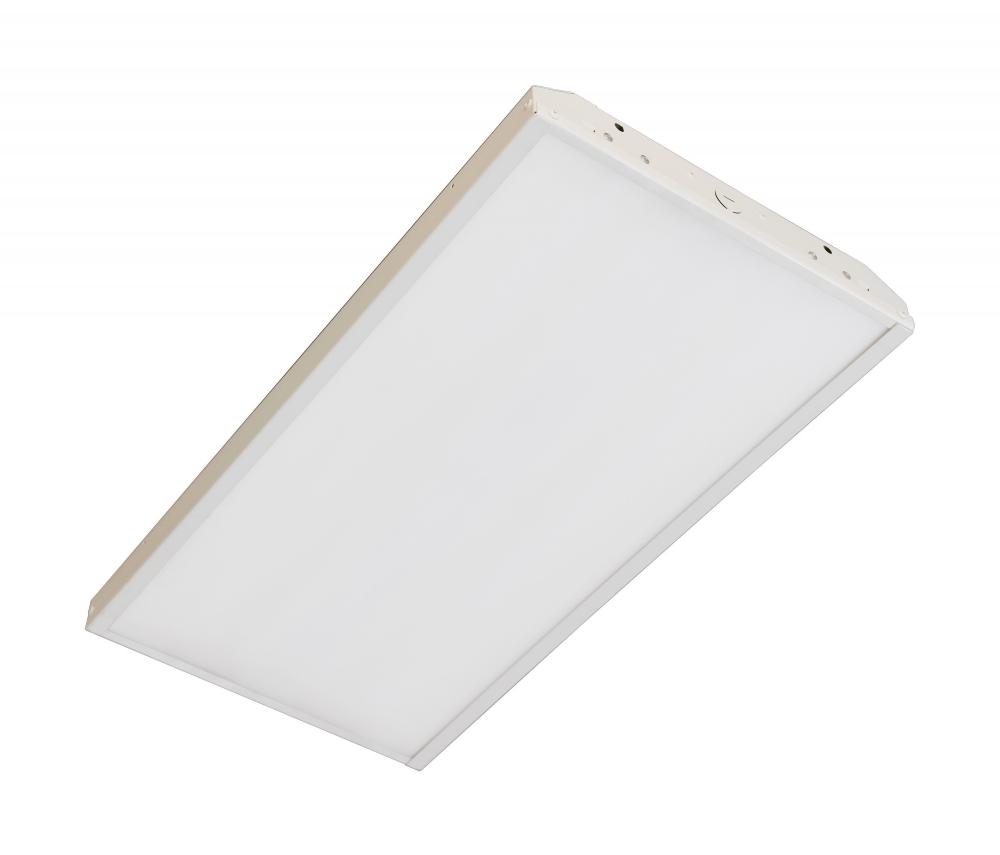

LED 4 ft. Linear Hi-Bay; 225W; 5000K; 100-277V

Standard Information

Category:

Utility

Subcategory:

Other Utility

Finish:

White

Style:

Traditional

Option:

LED

Prop 65

Lumens:

3300+

Kelvin:

5501-6000

Refinement Options

Category:

Hi-Bay

Sub Category:

Linear

Style:

Utility

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Natural Light

Dimmable:

Yes-Dimmable

Each Height:

15.75

Each Length:

47.83

Each Width:

4.33

Length:

45.87

Lumens:

30375L

Tariff Code:

9405.11.6020

Warranty:

5 Year Limited - Fixtures

Amps:

2.250-0.812A

ANSI Base:

Integrated

BAA Compliant:

No

Beam Angle:

120

CA Prop-65:

Lead

CCT Selectable:

No

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Direct Wired

Country Of Origin:

Vietnam

CRI:

80+

Dimmable Down To:

100 to 20 percent

Dimmable Function:

0-10V Dimming Only

DLC Classification:

Premium

DLC Primary Use:

High-Bay Luminaires for Commercial and Industrial Buildings

Each Cube:

1.8877

Each Quantity:

1

Efficacy:

135.00 LPW

FCC Compliant:

Yes

Feature 1:

Broad, even light distribution

Feature 2:

1-10V Dimming

Feature 3:

Damp rated for indoor use

Feature 4:

L:45.87 inches; W:12.60 inches; H:2.68 inches

Feature 5:

Rugged construction, White Finish

Finish Family:

White

Incandescent Equivalent:

2000W

Includes:

(2) 48 Inch Chain; (2) V-Clips; (1) 1.02 Inch Mounting Bracket

Indoor Outdoor:

Indoor

IP Rating:

IP20

JA8 Compliant:

No

Lens Finish:

Frost

Lens Material:

Polystyrene (PS)

Long Description:

SATCO NUVO's 65-508 4 foot, 225-watt, premium LED linear high-bay fixture is DLC premium natural light and a 120 degree beam spread. Damp rated for indoor use, it is suitable for commercial and industrial buildings. Sleek and long-lasting, this linear

Material:

Aluminum

Mounting Procedure:

Ceiling: Chain

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

0.95

Quantity In Pack:

1

R9 Value:

7

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO's 4 foot, 225-watt, premium LED linear high-bay fixture is DLC premium natural light and a 120 degree beam spread. Damp rated for indoor use, it is suitable for commercial and industrial buildings. Sleek and long-lasting, this linear high-ba

Safety Listing:

cULus - Certified

SDS class:

LED_Fixture

Short Description:

225W LED 4FT LINEAR HI-BAY

Temperature (CCT):

5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Total Harmonic Distortion:

9.30%

Wattage Selectable:

No

Weight Lb.:

16.2

Wire Gauge:

18

Wire Quantity:

5

Wire Temp Rating:

105C (221F)
