Product Overview

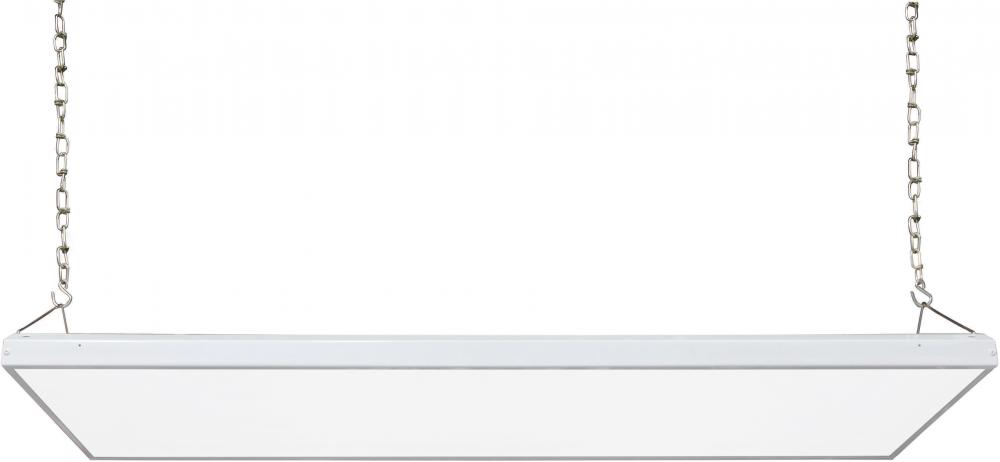

LED 4 ft. Linear Hi-Bay; 225W; 4000K; 100-277V

Standard Information

Category:

Utility

Subcategory:

Other Utility

Finish:

White

Style:

Traditional

Option:

LED

Prop 65

Lumens:

3300+

Kelvin:

4001-4500

Refinement Options

Category:

Hi-Bay

Sub Category:

Linear

Style:

Utility

Additional Info:

Includes brackets and 48 inch chain

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Cool White

Dimmable:

Yes-Dimmable

Each Height:

15.75

Each Length:

47.83

Each Width:

4.33

Length:

45.87

Lumens:

30375L

Tariff Code:

9405.11.6020

Warranty:

5 Year Limited - Fixtures

Amps:

2.250-0.812A

ANSI Base:

Integrated

BAA Compliant:

No

Beam Angle:

120

CA Prop-65:

Lead

CCT Selectable:

No

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Direct Wired

Country Of Origin:

Vietnam

CRI:

80+

Dimmable Down To:

100 to 20 percent

Dimmable Function:

0-10V Dimming Only

DLC Classification:

Premium

DLC Primary Use:

High-Bay Luminaires for Commercial and Industrial Buildings

Each Cube:

1.8877

Each Quantity:

1

Efficacy:

135.00 LPW

FCC Compliant:

Yes

Feature 1:

Length: 45.87 inches, Width: 12.60 inches, Height: 2.99 inches

Feature 2:

Dimmable

Feature 3:

Damp location rated for indoor use

Feature 4:

4000K Cool White Light

Feature 5:

Superior 80 CRI light quality

Feature 6:

5 year limited warranty

Feature 7:

30375 lumens

Feature 8:

Rated for 50,000 hours

Feature 9:

FCC and RoHS compliant

Finish Family:

White

Incandescent Equivalent:

2000W

Includes:

(2) 48 Inch Chain; (2) V-Clips; (1) 1.02 Inch Mounting Bracket

Indoor Outdoor:

Indoor

IP Rating:

IP20

JA8 Compliant:

No

Long Description:

SATCO NUVO's 65-507 225 watt, 4 foot LED Linear High Bay Fixture provides broad, even light distribution in all commercial applications. Illuminate your work space with this energy saving LED fixture that is functional and efficient. With a high lumens

Material:

Aluminum

Mounting Procedure:

Ceiling: Chain

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

0.94

Quantity In Pack:

1

R9 Value:

9

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO's 225 watt, 4 foot LED Linear High Bay Fixture provides broad, even light distribution in all commercial applications. Illuminate your work space with this energy saving LED fixture that is functional and efficient. With a high lumens count,

Safety Listing:

cULus - Certified

SDS class:

LED_Fixture

Short Description:

225W LED 4FT LINEAR HI-BAY

Temperature (CCT):

4000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Total Harmonic Distortion:

9.30%

Wattage Selectable:

No

Weight Lb.:

19.48
