Product Overview

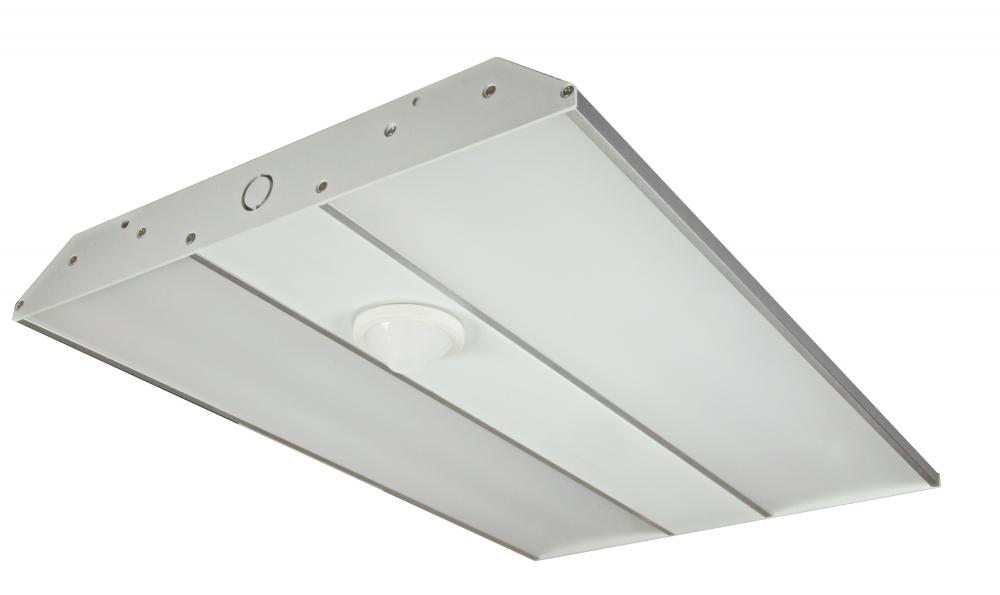

LED 2' Linear Hi-Bay; 100W; 4000K; 100-277V

Standard Information

Category:

Utility

Subcategory:

Other Utility

Finish:

Aluminum

Option:

LED

Prop 65

Refinement Options

Category:

Hi-Bay

Sub Category:

Linear

Style:

Utility

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Cool White

Dimmable:

Yes-Dimmable

Each Height:

3.94

Each Length:

24.41

Each Width:

17.52

Length:

22

Lumens:

13000L

Tariff Code:

9405.42.6000

Warranty:

5 Year Limited - Fixtures

Amps:

1.000-0.361A

ANSI Base:

Integrated

BAA Compliant:

No

CA Prop-65:

Lead

CCT Selectable:

No

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Direct Wired

Country Of Origin:

China

CRI:

80+

Dimmable Down To:

100 to 20 percent

Dimmable Function:

0-10V Dimming Only

Each Cube:

0.9751

Each Quantity:

1

Efficacy:

130.00 LPW

FCC Compliant:

Yes

Finish Family:

Silver

Incandescent Equivalent:

500W

Indoor Outdoor:

Indoor

JA8 Compliant:

No

Material:

Aluminum / Polycarbonate (PC)

Mounting Procedure:

Ceiling

Operating Temp:

-30C (-22F) to +55C (+131F)

Order In Multiples Of:

1

Pack Type:

Box

Photocell:

Optional Occupancy Sensor

Power Factor:

0.99

Quantity In Pack:

1

Replaceable Light Source:

No

RoHS Compliant:

Yes

Safety Listing:

cETLus - Listed

SDS class:

LED_Fixture

Short Description:

100W LED 2 FT. LINEAR HI-BAY

Temperature (CCT):

4000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Wattage Selectable:

No

Weight Lb.:

10.36
