Part Number: A36H3 / Vendor ID #: 81

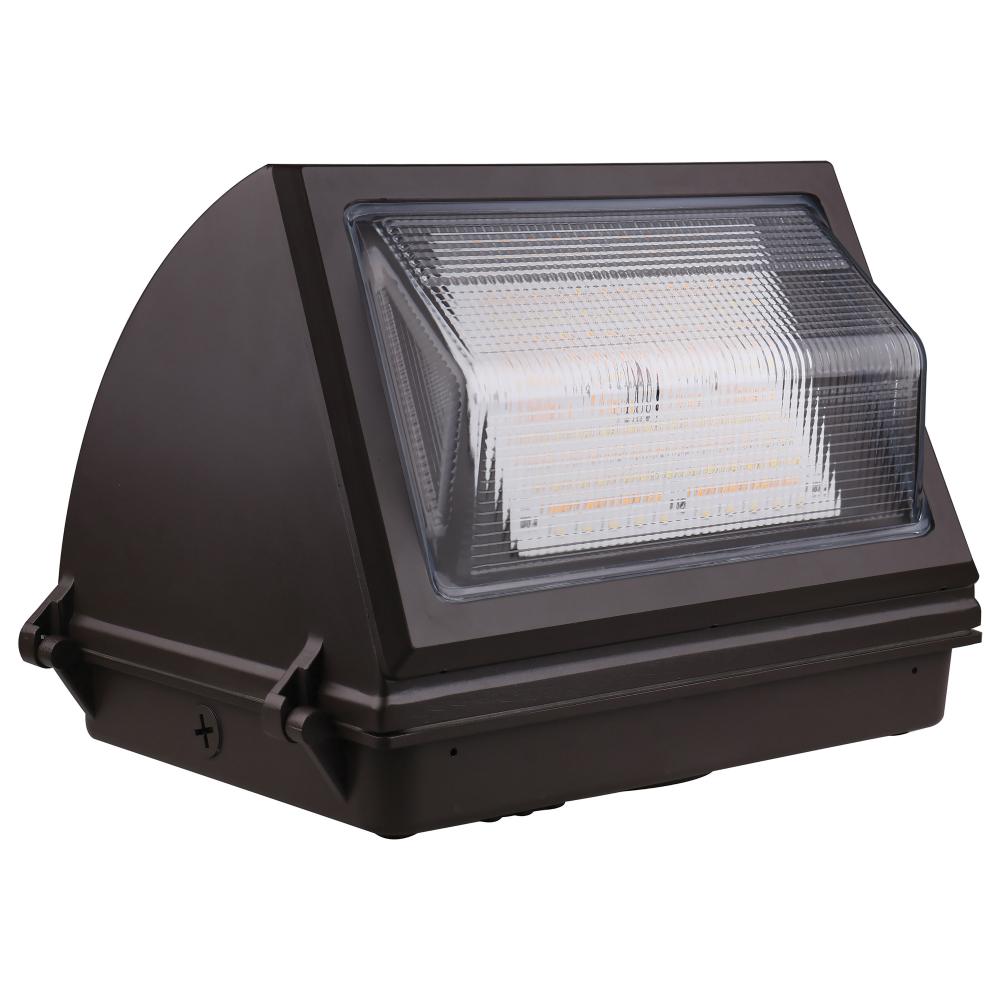

Emergency LED Cutoff Wall Pack; CCT Selectable 3K/4K/5K; Wattage Adjustable; Bypassable Photocell;

$358.50

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 6 items available.

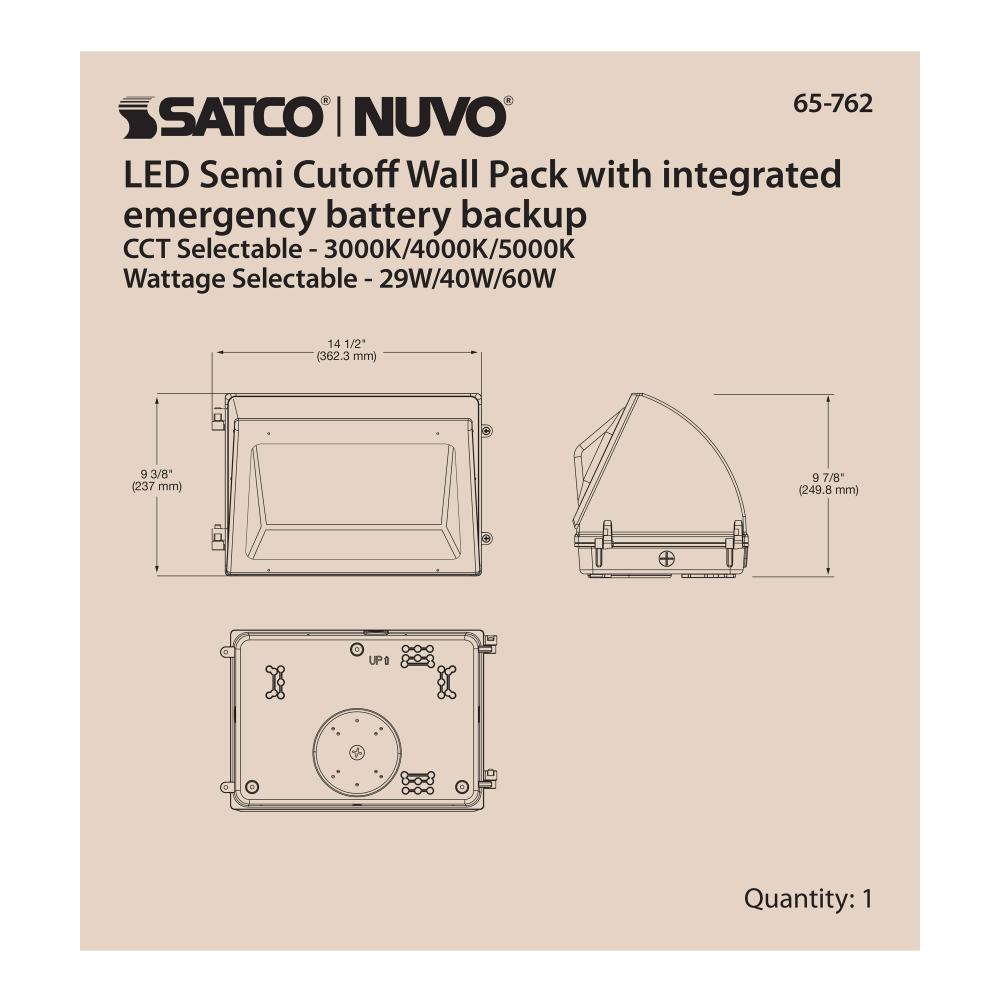

Dimensions

Height: 9.83"

Width: 14.26"

Product Overview

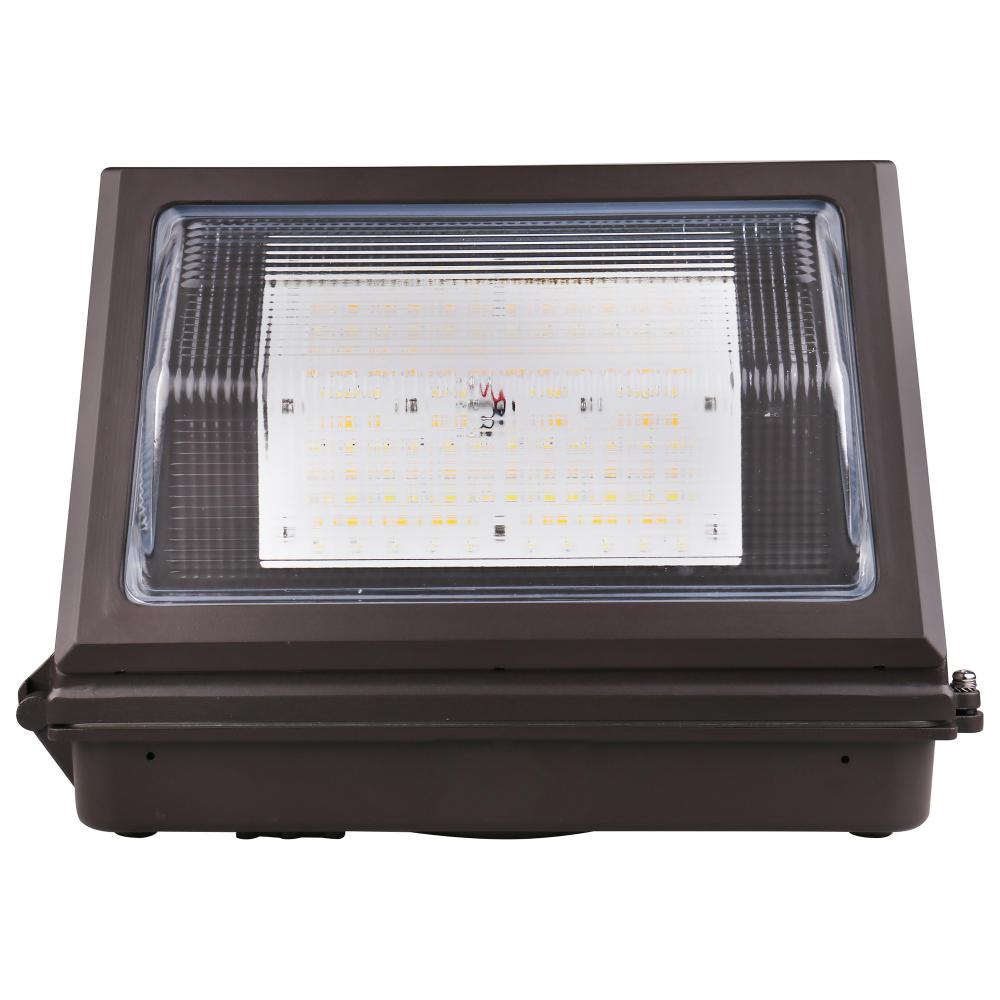

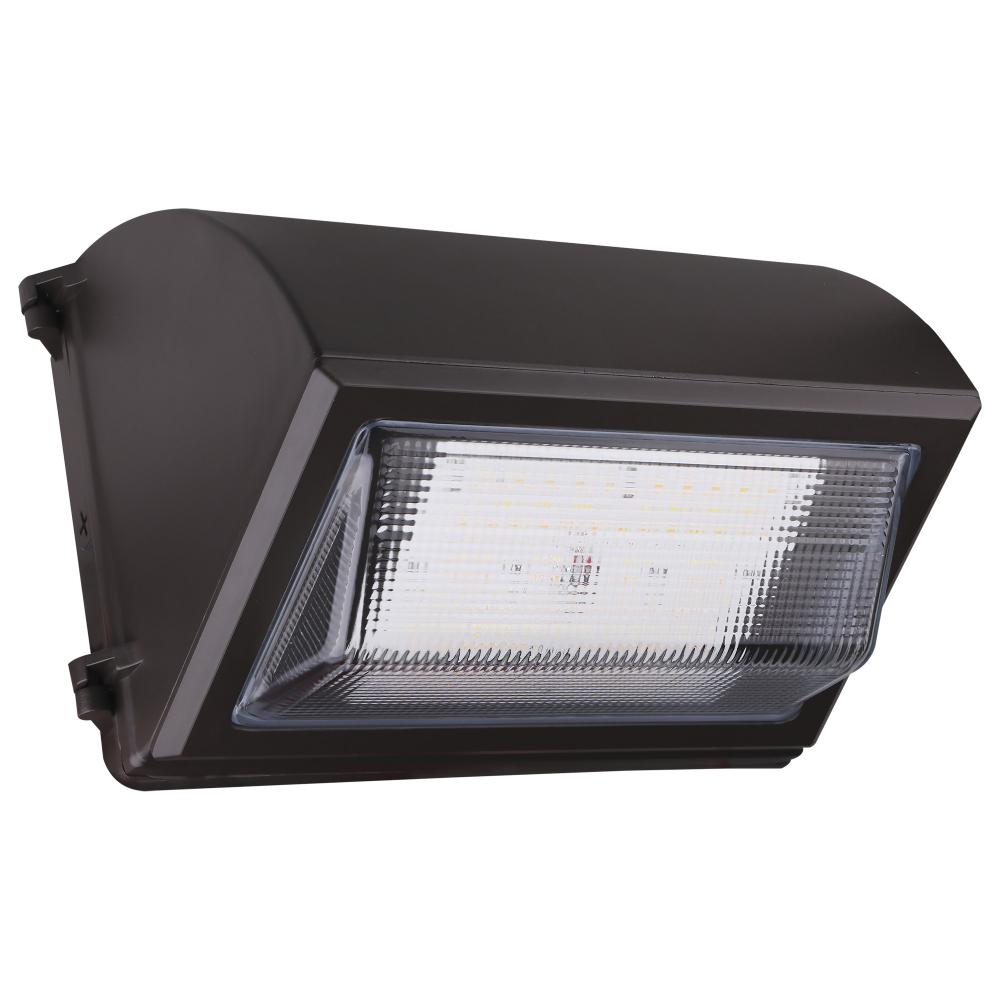

Emergency LED Cutoff Wall Pack; CCT Selectable 3K/4K/5K; Wattage Adjustable; Bypassable Photocell; 120-277 Volt

Standard Information

Category:

Exterior

Sconces

Subcategory:

Wall Lights

Outdoor Wall Lights

Finish:

Bronze

Style:

Traditional

Option:

LED

Prop 65

Lumens:

3300+

Kelvin:

4001-4500

Refinement Options

Category:

Wall Pack

Sub Category:

Standard

Style:

Traditional

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm to Cool White

Dimmable:

Yes-Dimmable

Each Height:

12.6

Each Length:

15.75

Each Width:

11.81

Lumens:

3915L-8400L

Tariff Code:

9405.42.6000

Warranty:

5 Year Limited - Fixtures

Amps:

0.242-0.105/0.333-0.144/0.500-0.217A

ANSI Base:

Integrated

BAA Compliant:

Battery Chemistry:

Lithium-ion (Li-ion)

Beam Angle:

110

B_U_G_Rating:

B2-U3-G3

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Hardwire

Country Of Origin:

Vietnam

CRI:

80+

Dimmable Down To:

100 to 20 percent

Dimmable Function:

0-10V Dimming Only

DLC Classification:

Premium

DLC Primary Use:

Outdoor Non-Cutoff and Semi-Cutoff Wall-Mounted Area Luminaires

Each Cube:

1.3563

Each Quantity:

Efficacy:

135.00/153.94/140.00 LPW

FCC Compliant:

Yes

Feature 1:

Maintenance free - no bulb to change

Feature 10:

Consistent, even light distribution

Feature 2:

Integrated By-Passable Photocell

Feature 3:

Built-in surge protection - 10KV

Feature 4:

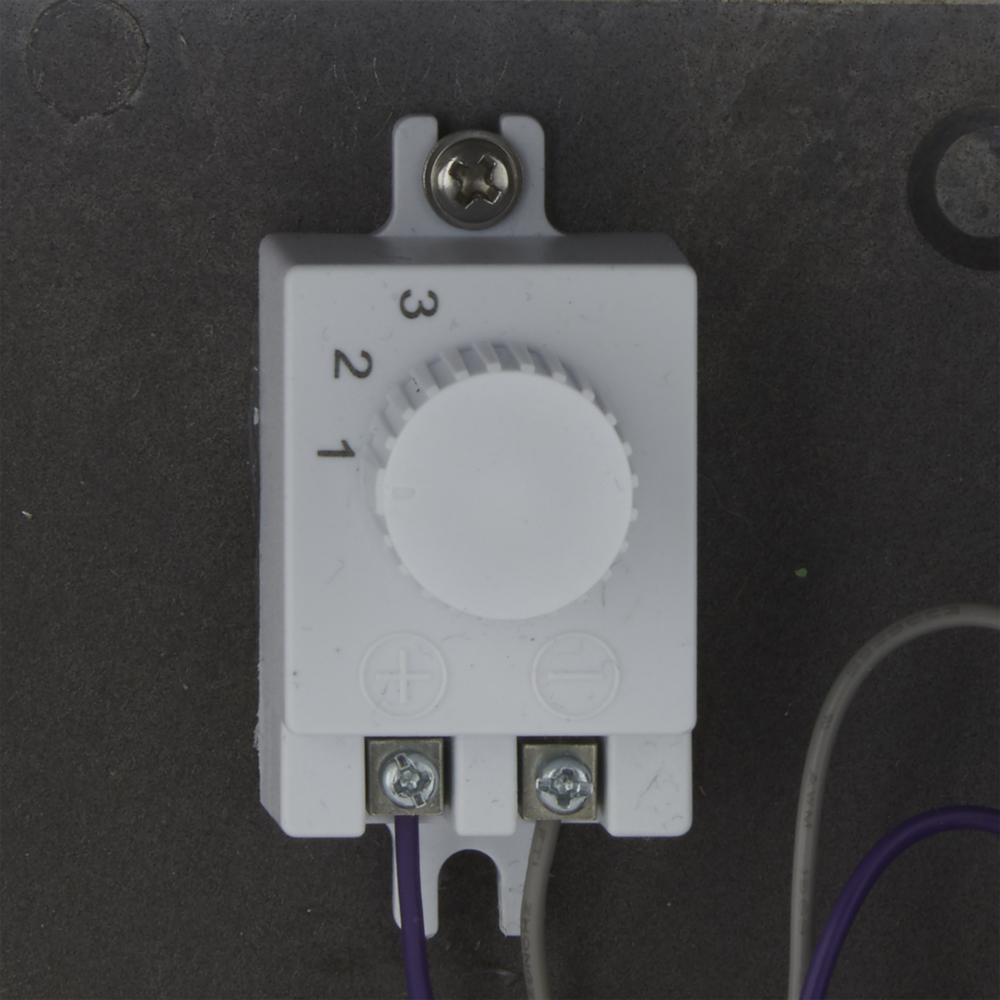

Wattage Selectable 29W/40W/60W

Feature 5:

50,000 Hours Long Life

Feature 6:

DLC Premium

Feature 7:

IP65 Rugged, All Weather Durability

Feature 8:

CCT Selectable 3000K/4000K/5000K

Feature 9:

Battery Mode 16W/1120 Lumens/90 min. Run Time

Finish Family:

Bronze

Has Emergency Battery:

Yes

HID Equiv:

75W-175W

Incandescent Equivalent:

200W-500W

Indoor Outdoor:

Indoor;Outdoor

IOT Enabled:

IP Rating:

IP65

JA8 Compliant:

Lens Material:

Glass

Long Description:

Introducing 65-762, SATCO NUVO's new CCT and Wattage selectable cutoff wall pack with integrated bypassable photocell and emergency battery backup. This cULus certified wall pack is offered in a traditional style with 29W/40W/60W wattage configurations

Material:

Die-Cast Aluminum

Mounting Procedure:

Wall

Operating Frequency:

50Hz

Operating Temp:

-40C (-40F) to +50C (+122F)

Order In Multiples Of:

Pack Type:

Box

Photocell:

Yes - Bypassable

Power Factor:

>0.9

Quantity In Pack:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

Introducing SATCO NUVO's new CCT and Wattage selectable wall packs with integrated by-passable photocells and emergency battery backup modes. These cULus certified wall packs are offered in both a traditional and semi-cutoff style in 29W/40W/60W select

Safety Listing:

cULus - Certified

SDS class:

LED_Fixture

Short Description:

EM CUTOFF WALL PACK CCT&WATT

Temperature (CCT):

3000K/4000K/5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

Total Harmonic Distortion:

<20%

Wattage Selectable:

Yes

Weight Lb.:

10.5
