Product Overview

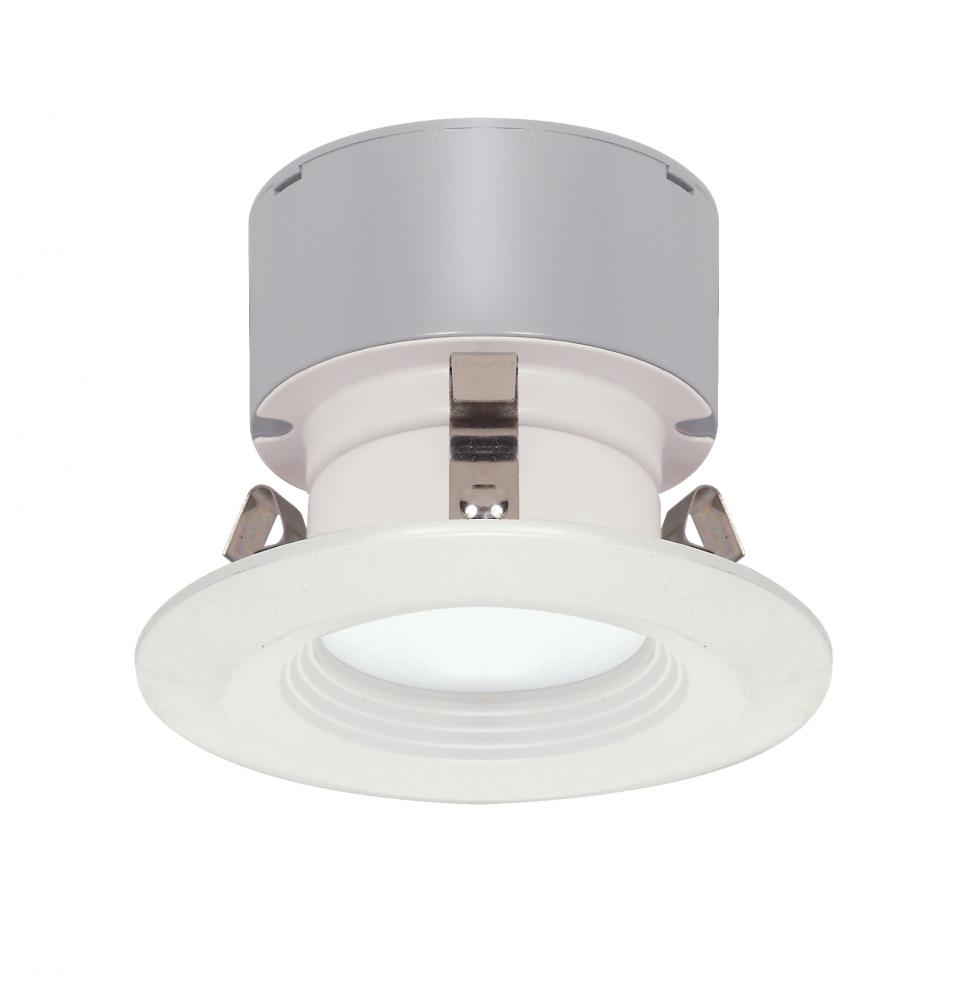

Discontinued - 7 watt LED Downlight Retrofit; 3" Baffle; 3000K; Miniature 2 Pin Round base; 12 volts; Dimmable

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Finish:

White

Style:

Contemporary

Option:

LED

Prop 65

Refinement Options

Category:

Recessed

Sub Category:

Retrofits

Style:

Contemporary

Additional Info:

The dimming control will depend on the Driver or transformer that is been used, as an example if a magnetic Tramformer is being used it will require an LV dimmer (for example Lutron DVLV-600P-WH) if an Electronic transformer is being used it will require a

Bulb Hours:

35000

Bulb Kelvin:

Warm White

Bulb Shape:

Integrated LED

Bulb Type:

LED

Diameter:

4

Dimmable:

Yes-Dimmable

Harmonized Codes:

8539.50.0091

Lumens:

401L

Ship Carton Height:

5.07

Ship Carton Length:

4.92

Ship Carton Width:

3.54

Warranty:

3 Year Limited - Fixtures

Amps:

0.583A

ANSI Base:

Bi-Pin Adapter

BAA Compliant:

No

Beam Spread:

90

CA Prop-65:

Lead

Can Size:

3 in.

Carton Cubic Feet:

0.0511

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Direct Wired

Country Of Origin:

China

CRI:

90+

Dimmable Down To:

100 to 20 percent

Dimming Type:

Forward Phase or Reverse Phase or Phase Selectable or Triac

Efficacy:

57.29 LPW

FCC Compliant:

Yes

Finish Family:

White

Fixture shape:

Round

Incandescent Equivalent:

50W

Indoor Outdoor:

Indoor

JA8 Compliant:

No

Mounting Procedure:

Ceiling

Operating Temprature:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

1

Pack Type:

Box

Quantity In Pack:

1

Replaceable Light Source:

No

RoHS Compliant:

Yes

SDS class:

LED_Fixture

Short Description:

7WLED/RDL/3"BFL/12V 90CRI 3K

Temperature (CCT):

3000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Trim Color:

White

Wattage Selectable:

No
