Product Overview

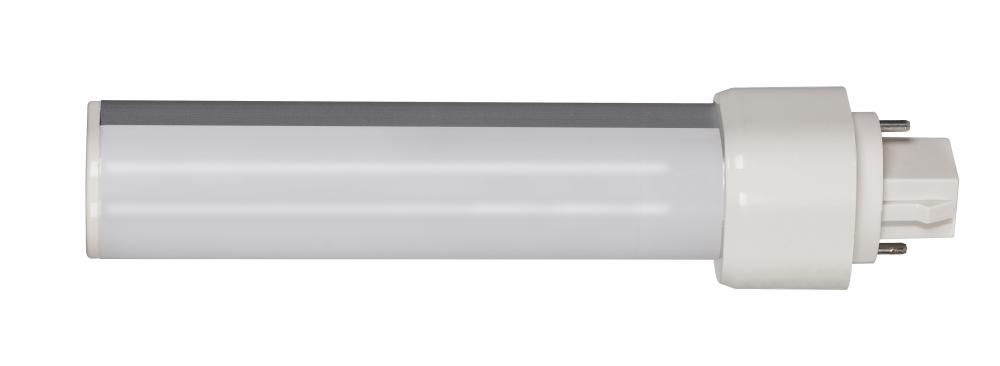

9 Watt LED PL 2-Pin; 3000K; 950 Lumens; G24d base; 50000 Average rated hours; 120 Deg. Beam Angle; Horizontal; Type B; Ballast Bypass

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Finish:

White

Style:

Traditional

Lumens:

801-1100

Kelvin:

2501-3000

Refinement Options

Category:

LED

Sub-Category:

LED CFL Replacements Pin Based

Volts:

120V-277V

Bulb Dimmable:

Non-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

3000K

Bulb Shape:

PL

Diameter:

1.09

EA Length:

1.5

Harmonized Codes:

8539.52.0091

Length:

6.63

Lumens:

950L

Shap Carton Width:

1.5

Ship Carton Height:

6.77

Ship Weight:

0.26

Warranty:

5-Years

Weight:

0.14

BAA Compliant:

No

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass- Direct wire only 100V-277V

Beam Spread:

120

Bulb ANSI Base:

G24d

Bulb Base:

G24d (2-Pin)

Bulb Finish:

Frost

Burning Position:

Horizontal

Carton Cubic Feet:

0.008800000000000001

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Warm White

Country Of Origin:

China

CRI:

80+

DLC Approved:

No

Efficacy:

105.56 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Enclosed Rated Lamp

FCC Compliant:

Yes

Flourescent Equivalent:

18W/26W

Has Camera:

No

Has Emergency Battery:

No

Housing Color:

White

Incandescent Equivalent:

40W

Installation Notes:

2-pin LED lamps work in both 2-pin (magnetic) and 4-pin (electronic) sockets.

IOT Enabled:

No

JA8 Compliant:

No

Lamp Ballast Type A/B/C:

Type B

Lamp Filament:

LED

Lens:

Yes

Lens Finish:

Frost

Location Rating:

Damp

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

0.9

Quantity In Pack:

1

R9 Value:

4

RoHS Compliant:

Yes

SDS class:

LED_Lamp

Short Description:

9WPLH/LED/830/BP/2P

Style:

Transitional

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Wattage Selectable:

No

Watts:

9W
