Product Overview

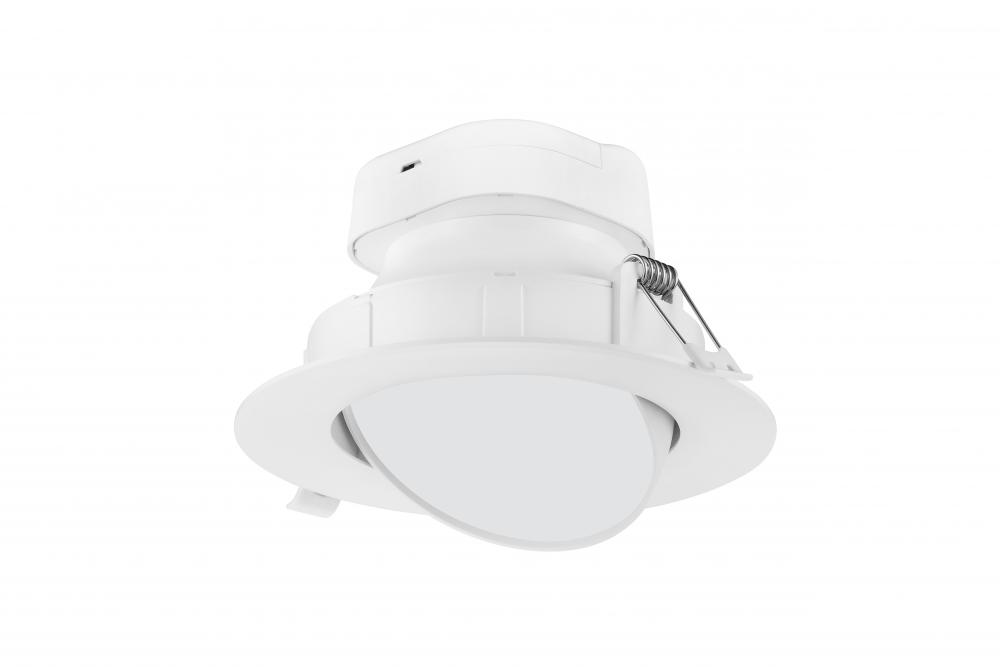

9 watt LED Direct Wire Downlight; Gimbaled; 6 inch; 5000K; 120 volt; Dimmable

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Finish:

White

Option:

LED

Prop 65

Refinement Options

Category:

Recessed

Sub Category:

Direct Wire

Style:

Utility

Bulb Hours:

40000

Bulb Kelvin:

Natural Light

Bulb Shape:

Integrated LED

Bulb Type:

LED

Diameter:

6.69

Dimmable:

Yes-Dimmable

Harmonized Codes:

9405.11.8010

Lumens:

720L

Ship Carton Height:

6.93

Ship Carton Length:

6.93

Ship Carton Width:

4.25

Warranty:

5 Year Limited - Fixtures

Air Tight:

Yes

Amps:

0.075A

ANSI Base:

Integrated

BAA Compliant:

No

Beam Spread:

90

CA Prop-65:

Lead

Carton Cubic Feet:

0.1181

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Ceiling Aperture:

5.70 in. Cutout

Connection:

Direct Wired

Country Of Origin:

China

CRI:

90+

Dimmable Down To:

100 to 20 percent

Dimming Type:

Forward Phase or Reverse Phase or Phase Selectable or Triac

Efficacy:

80.00 LPW

FCC Compliant:

Yes

Feature 1:

Canless recess lighting engineered for new constructions, drop ceilings, multi-level constructions and shallow ceilings.

Feature 2:

Fixture dimensional specifications (in inches) Height: 3.69, Diameter: 6.69

Feature 3:

Direct Wired installation; Suitable for damp locations, indoor use only

Feature 4:

Integrated LED

Feature 5:

90 CRI superior quality LED light, rated for 40000 hours, for an energy efficient lighting option

Feature 6:

5 year limited warranty. See manufacturer website for details

Finish Family:

White

Fixture shape:

Round

IC Rated:

Yes

Incandescent Equivalent:

65W

Indoor Outdoor:

Indoor

JA8 Compliant:

No

Long Description:

Satco's S11715, 6 inch round 9 watt gimbaled LED direct wire downlight retrofit recessed fixture makes downlighting convenient to install in multi-level spaces. Dimmable, with superior 90 CRI light in 5000K, and this fixture features easy clip in insta

Material:

Aluminum / Polycarbonate (PC)

Max Drywall Thickness:

1-1/8 in.

Minimum Compartment Size:

Height: 4.72 in.

Mounting Procedure:

Ceiling

Operating Frequency:

50/60Hz

Operating Temprature:

-20C (-4F) to +40C (+104F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

>.9

Quantity In Pack:

1

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

The 6 inch round 9 watt gimbaled LED direct wire downlight retrofit recessed fixture makes downlighting convenient to install in multi-level spaces. Dimmable, with superior 90 CRI light in 5000K, and this fixture features easy clip in installation.

Safety Listing:

cETLus - Listed

SDS class:

LED_Lamp

Short Description:

9WLED/DW/GBL/6/50K/120V

Sloped Ceiling Compatible:

Yes

Specification Notes:

Aiming Angle: 30dg

Temperature (CCT):

5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Trim Color:

White

Wattage Selectable:

No

Weight Lb.:

0.72
