Product Overview

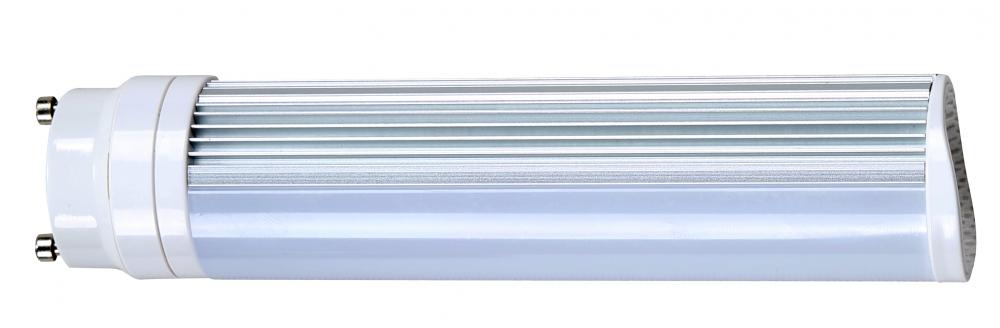

8 Watt LED PL GU24 base; 3000K; Type B; Ballast Bypass; 920 Lumens; 50000 Average rated hours; 120 deg. Beam Angle; 120-277 Volt

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Finish:

White

Style:

Traditional

Lumens:

801-1100

Kelvin:

2501-3000

Wattage:

8w

Refinement Options

Category:

LED

Sub-Category:

LED CFL Replacements Pin Based

Volts:

120V-277V

Bulb Dimmable:

Non-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

3000K

Bulb Shape:

PL

Diameter:

1.38

EA Length:

1.65

Harmonized Codes:

8539.52.0091

Length:

6.41

Lumens:

920L

Shap Carton Width:

1.65

Ship Carton Height:

7.28

Ship Weight:

0.3

Warranty:

5 Year Limited - 10 hr per day

Weight:

0.21

BAA Compliant:

No

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass

Beam Spread:

120

Bulb ANSI Base:

GU24

Bulb Base:

Bi Pin GU24

Bulb Finish:

Frost

Burning Position:

Universal

Carton Cubic Feet:

0.0115

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

Non-Compliant - R8 <72

CEC Terse:

Non-Compliant

CEC Web Text:

Non-Compliant

Color Temprature:

Warm White

Country Of Origin:

China

CRI:

80+

DLC Approved:

No

Efficacy:

115.00 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Enclosed Rated Lamp

FCC Compliant:

Yes

Flourescent Equivalent:

13W/18W

Housing Color:

White

Incandescent Equivalent:

40W

JA8 Compliant:

No

Lamp Ballast Type A/B/C:

Type B

Lamp Filament:

LED

Lens:

Yes

Lens Finish:

Frost

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

1

Pack Type:

Box

Quantity In Pack:

1

RoHS Compliant:

Yes

SDS class:

LED_Lamp

Short Description:

8W/H/LED/CFL/830/GU24/120-277V

Style:

Transitional

Surge Protection:

Built-in-surge protection - 0.5KV

Technology:

LED

Title 20 Compliant:

No

Title 24 Compliant:

No

Wattage Selectable:

No

Watts:

8W
