Product Overview

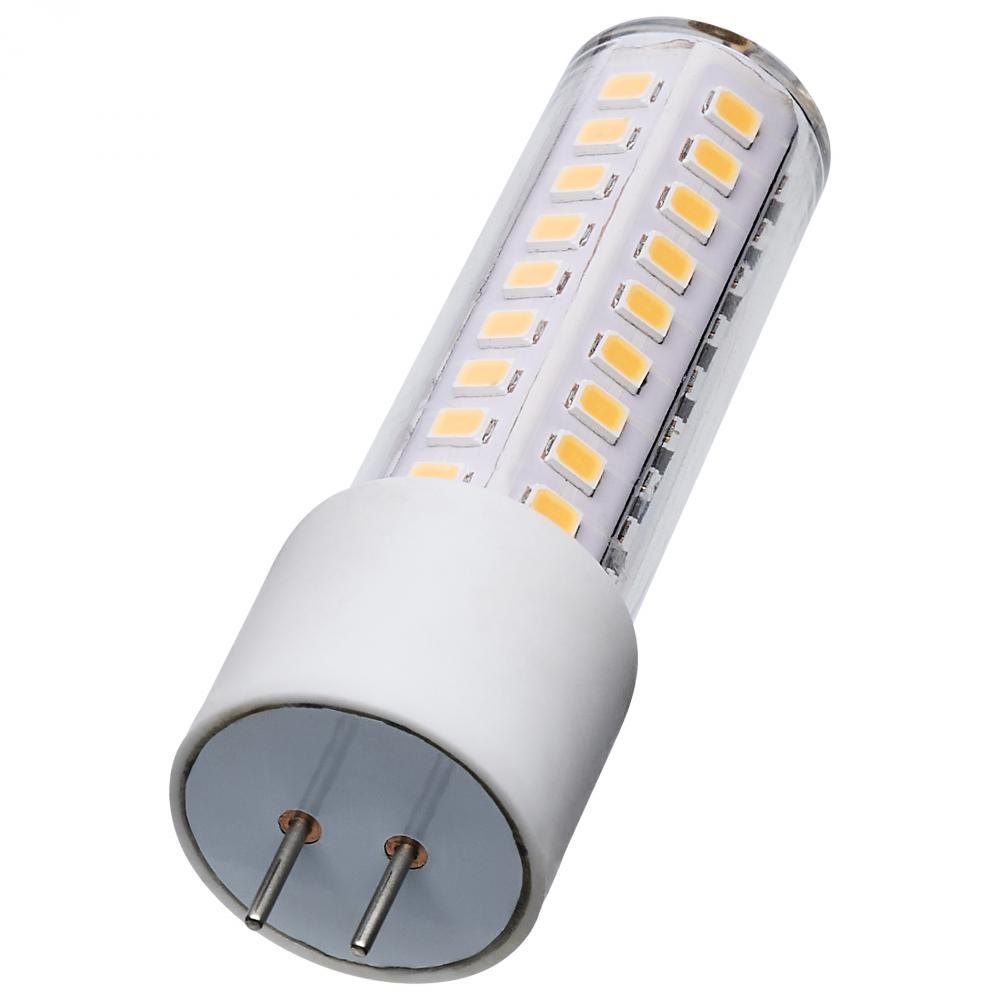

6.5 Watt T6 LED; Clear Finish; GY6.35 Base; 3000K; 12 Volt

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Refinement Options

Category:

LED

Sub-Category:

Mini and Pin-Based LED

Volts:

12V

Bulb Dimmable:

Yes-Dimmable

Bulb Hours:

25000

Bulb Kelvin:

3000K

Bulb Shape:

T6

Diameter:

0.89

EA Length:

1.5

Harmonized Codes:

8539.52.0010

Length:

3.03

Lumens:

650L

Shap Carton Width:

1.5

Ship Carton Height:

2.95

Ship Weight:

0.09

Warranty:

3 Year Limited - Mini LED Pin Base

Weight:

0.08

Beam Spread:

300

Bulb ANSI Base:

GY6.35

Bulb Base:

Bi Pin GY6.35

Bulb Finish:

Clear

Candle Power:

45

Carton Cubic Feet:

0.0038

Cartons Per Unit:

1

CBCP:

45

CCT Selectable:

No

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Soft White

Country Of Origin:

China

CRI:

80+

Dimmable Down To:

100 to 10 percent

Dimmable Function:

Check the transformer/driver MFG for dimmer compatibility

Dimming Type:

Phase cut

DLC Approved:

No

Efficacy:

100.00 LPW

Enclosed Fixture Use:

Yes

FCC Compliant:

Yes

Feature 1:

Low 12-volt Operation

Feature 2:

300 degree Omni-Directional Light

Feature 3:

3000K CCT

Feature 4:

Damp location rated

Feature 5:

T6, Bi-Pin GY6.35 Base

Feature 6:

Dimmable

Feature 7:

25,000 Life Hours

Flicker Free:

No

Housing Color:

White

Incandescent Equivalent:

50W

Indoor Outdoor:

Indoor

Installation Notes:

Not for use in vapor tight fixtures.

JA8 Compliant:

No

Lamp Filament:

LED

Lens Material:

Polycarbonate (PC)

Location Rating:

Damp

Long Description:

Illuminate your surroundings while maximizing energy efficiency and cost-effectiveness with SATCO NUVO's S12320 6.5-watt, GY6.35-base, Halogen replacement lamp. Engineered for low 12-volt operation and featuring 300-degree omni-directional lighting, th

Material:

Ceramic / Polycarbonate (PC)

Operating Frequency:

60Hz

Operating Temp:

-20C (-4F) to +40C (+104F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

0.7

Quantity In Pack:

1

RoHS Compliant:

Yes

Romance Copy:

Illuminate your surroundings while maximizing energy efficiency and cost-effectiveness with SATCO NUVO's G4 and GY6.35 Halogen replacement lamps. Available in an array of shapes, bases, and finishes, these lamps are equipped with LED technology, ensuri

SDS class:

LED_Lamp

Short Description:

6.5W/LED/GY6.35/CL/830/12V

Style:

Utility

Surge Protection:

Built-in surge protection - 1.5KV

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Total Harmonic Distortion:

70%

Wattage Selectable:

No

Watts:

6.5W
