Product Overview

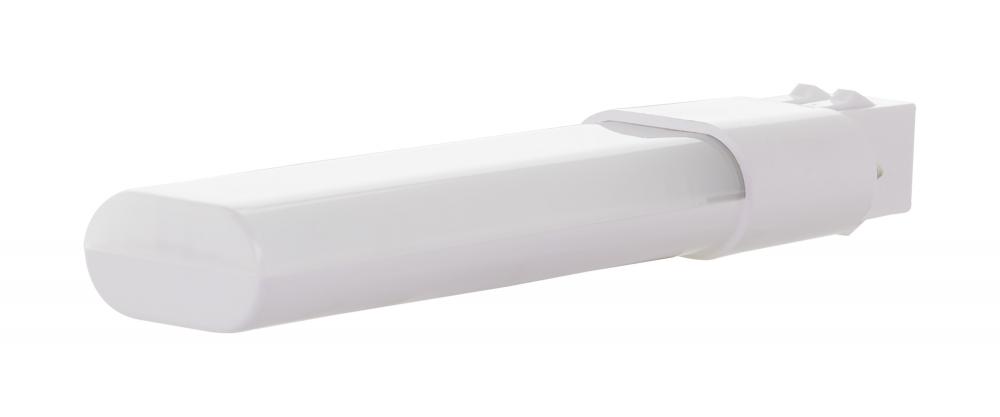

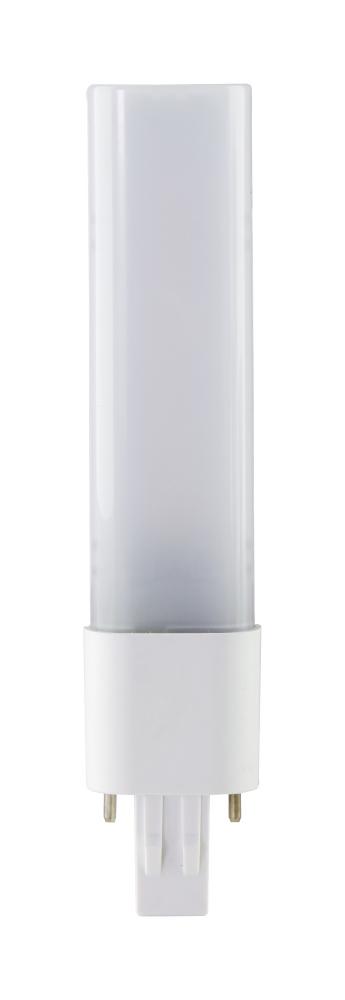

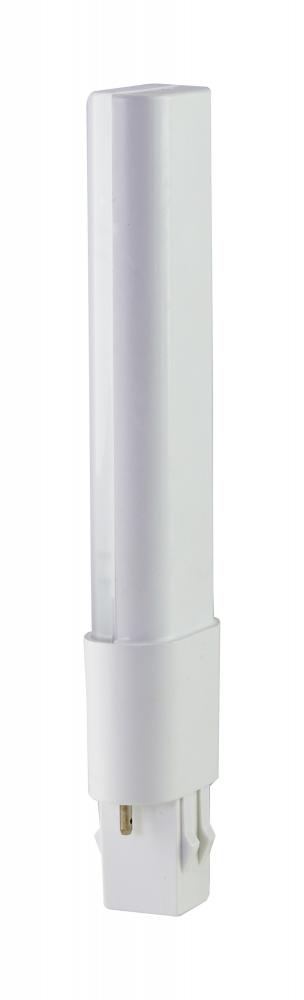

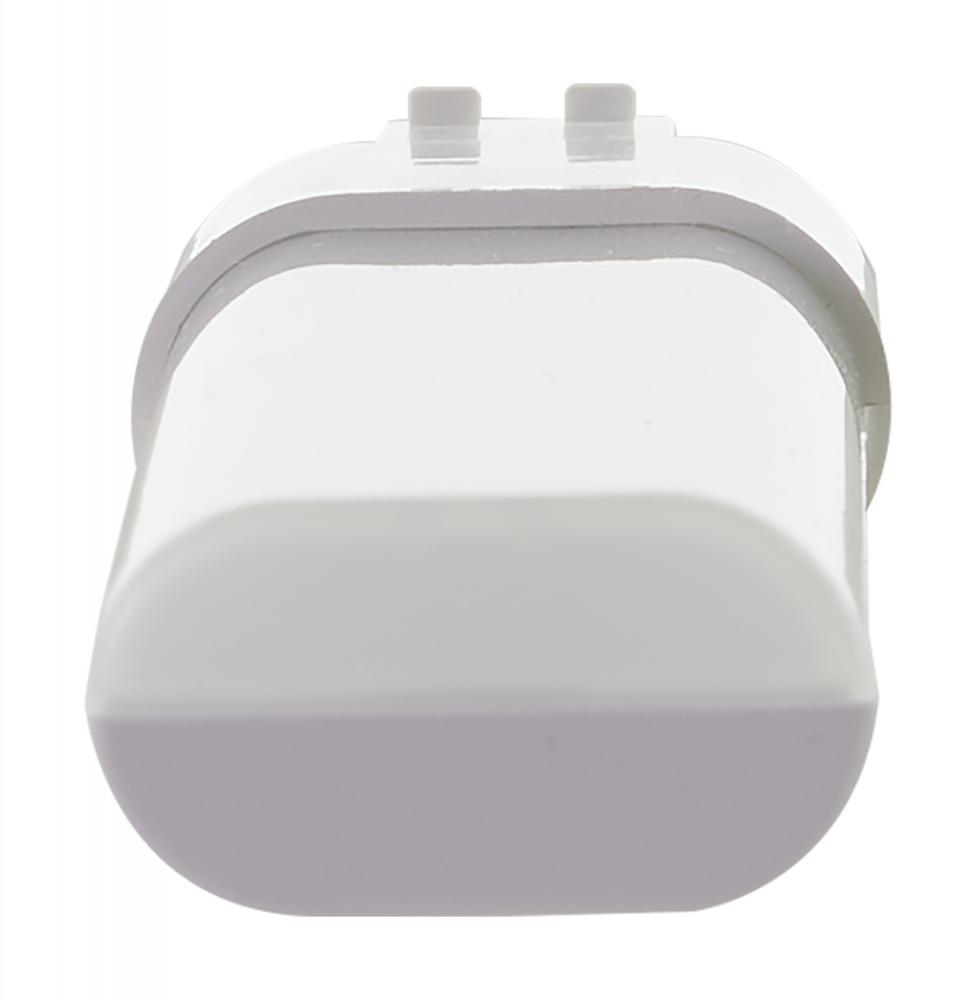

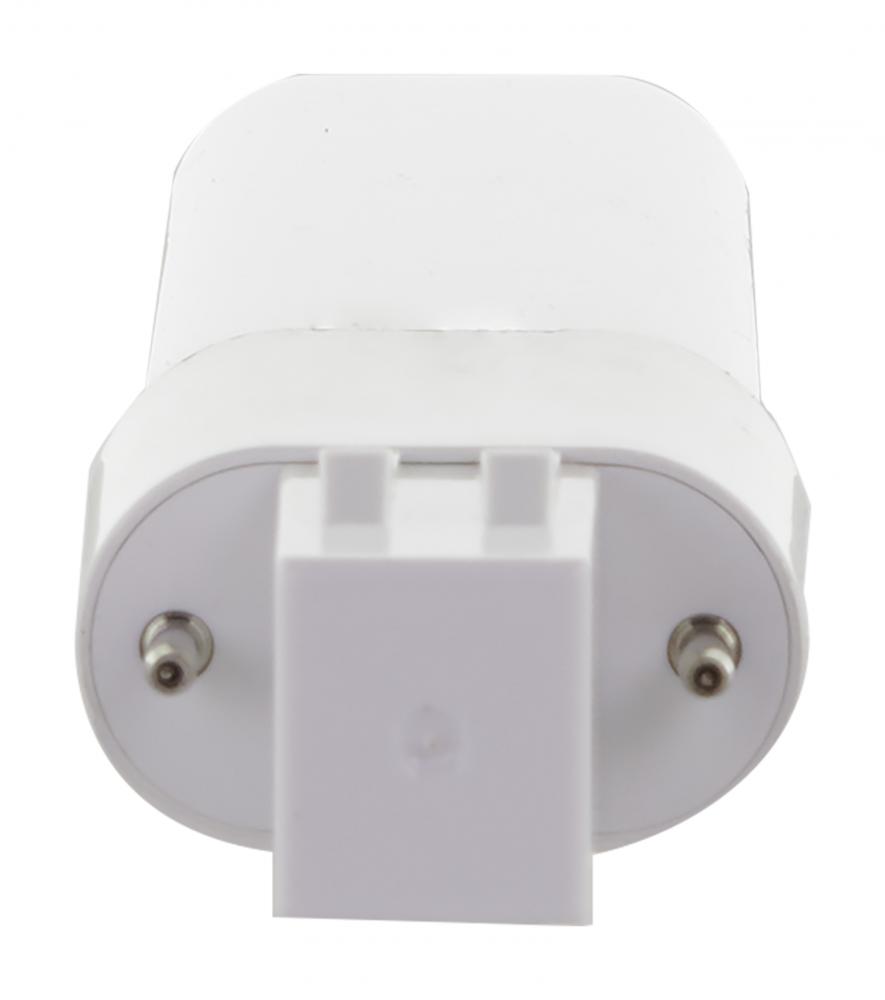

5.5 Watt LED PL 2-PIN Dual Mode; 4000K; 550 Lumens; GX23 base; 50000 Average rated hours; 120 deg. Beam Angle; Type A/B Ballast Dependent or Ballast Bypass; 120-277 Volt

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Finish:

White

Lumens:

450-800

Kelvin:

3501-4000

Refinement Options

Category:

LED

Sub-Category:

LED CFL Replacements Pin Based

Volts:

120V-277V

Bulb Dimmable:

Non-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

4000K

Bulb Shape:

PL

Diameter:

1.26

EA Length:

1.34

Harmonized Codes:

8539.52.0091

Length:

5.98

Lumens:

550L

Shap Carton Width:

0.9399999999999999

Ship Carton Height:

6.14

Ship Weight:

0.15

Warranty:

5 Year Limited - 10 hr per day

Weight:

0.11

BAA Compliant:

No

Ballast Bypass Direct:

Dual

Ballasting Requirements:

Ballast required (Type A) or Ballast Bypass (Type B)

Beam Spread:

120

Bulb ANSI Base:

GX23

Bulb Base:

GX23

Bulb Finish:

Frost

Burning Position:

Universal

Carton Cubic Feet:

0.0045

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Cool White

Country Of Origin:

China

CRI:

80+

DLC Approved:

No

Efficacy:

100.00 LPW

Enclosed Fixture Use:

No

Enclosure Rating:

Open Rated Lamp

FCC Compliant:

Yes

Feature 1:

Cool white light

Feature 2:

Type A/B Ballast Dependent or Ballast Bypass

Feature 3:

Damp rated for indoor use

Feature 4:

L:5.98 D:1.26

Feature 5:

PL, Frosted Finish

Flourescent Equivalent:

13W

Housing Color:

White

Incandescent Equivalent:

45W

Indoor Outdoor:

Indoor

JA8 Compliant:

No

Lamp Ballast Type A/B/C:

Type A/B

Lamp End Type:

Single Ended

Lamp Filament:

LED

Lens:

Yes

Lens Finish:

Frost

Lens Material:

Glass

Location Rating:

Damp

Long Description:

Satco's S11553 5.5-watt, 2-Pin dual mode, LED frosted bulb features cool white light and a 120 degree beam spread. Ideal for offices, malls, supermarkets, and warehouses, this bulb is long-lasting and energy efficient. The bulb has a GX23 base and deli

Material:

Glass / Plastic

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

0.97

Quantity In Pack:

1

R9 Value:

7

RoHS Compliant:

Yes

Romance Copy:

Satco's 5.5-watt, 2-Pin dual mode, LED frosted bulb features cool white light and a 120 degree beam spread. Ideal for offices, malls, supermarkets, and warehouses, this bulb is long-lasting and energy efficient. The bulb has a GX23 base and delivers ex

SDS class:

LED_Lamp

Short Description:

5.5W/LED/CFL/840/2P/DUAL

Style:

Transitional

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Wattage Selectable:

No

Watts:

5.5W
