Product Overview

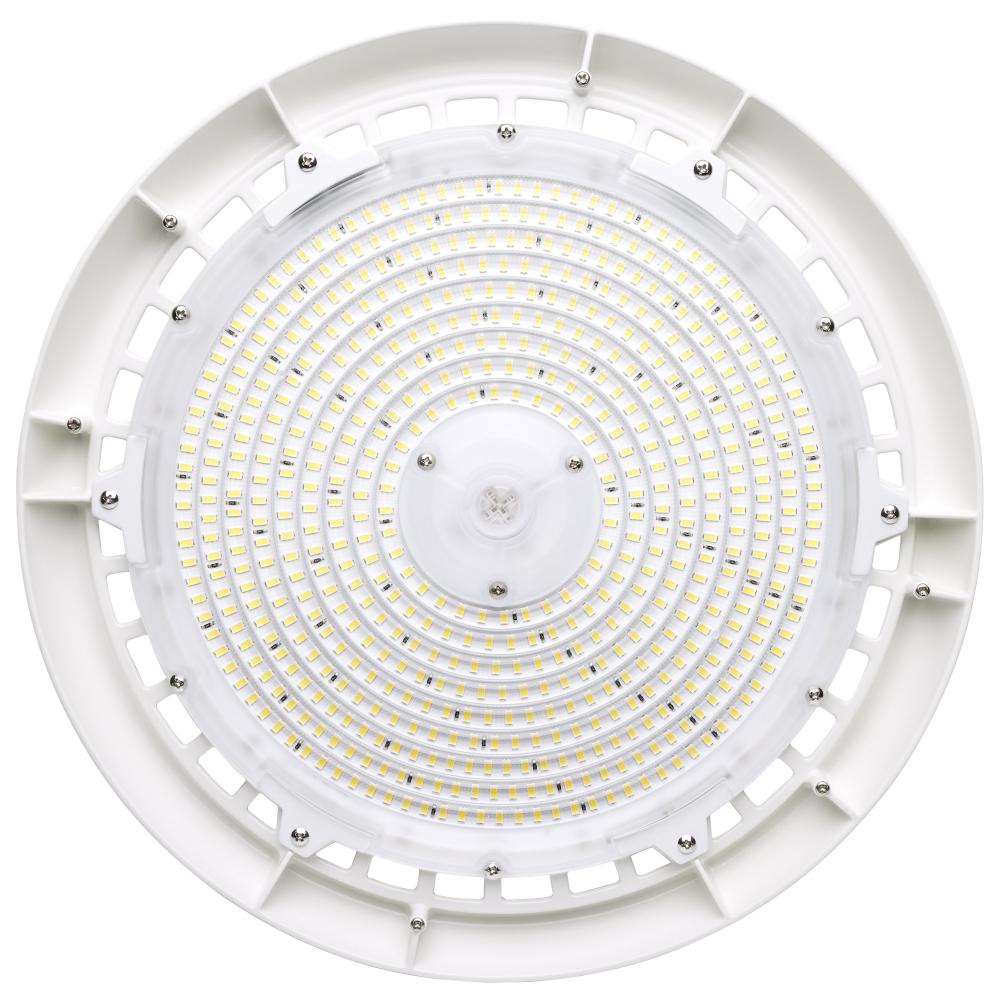

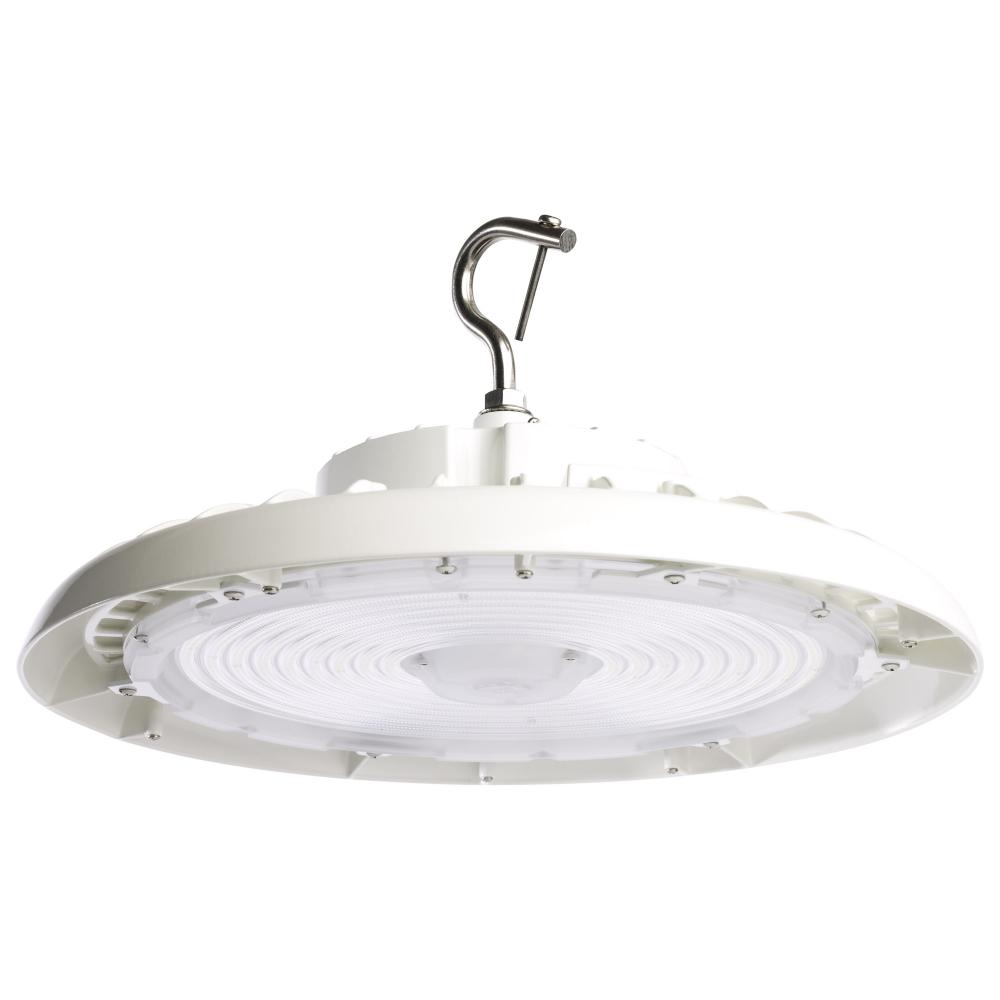

240 Watt UFO LED High Bay; 5000K; 34560 Lumens; 120-277 Volt; White Finish

Standard Information

Category:

Utility

Subcategory:

Other Utility

Option:

LED

Prop 65

Lumens:

3300+

Kelvin:

5501-6000

Refinement Options

Category:

Hi-Bay

Sub Category:

UFO

Style:

Utility

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Natural Light

Diameter:

13.39

Dimmable:

Yes-Dimmable

Each Height:

4.92

Each Length:

14.17

Each Width:

14.17

Lumens:

34560L

Tariff Code:

9405.11.6020

Warranty:

5 Year Limited - Fixtures

Wire Length:

72

Amps:

2.00-0.866A

ANSI Base:

Integrated

BAA Compliant:

No

Beam Angle:

90

CA Prop-65:

Lead

CCT Selectable:

No

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Country Of Origin:

Vietnam

CRI:

80+

Dimmable Down To:

100 to 20 percent

Dimmable Function:

0-10V Dimming Only

DLC Classification:

Premium

DLC Primary Use:

High-Bay Luminaires for Commercial and Industrial Buildings

Each Cube:

0.5717

Each Quantity:

1

Efficacy:

144.00 LPW

FCC Compliant:

Yes

Feature 1:

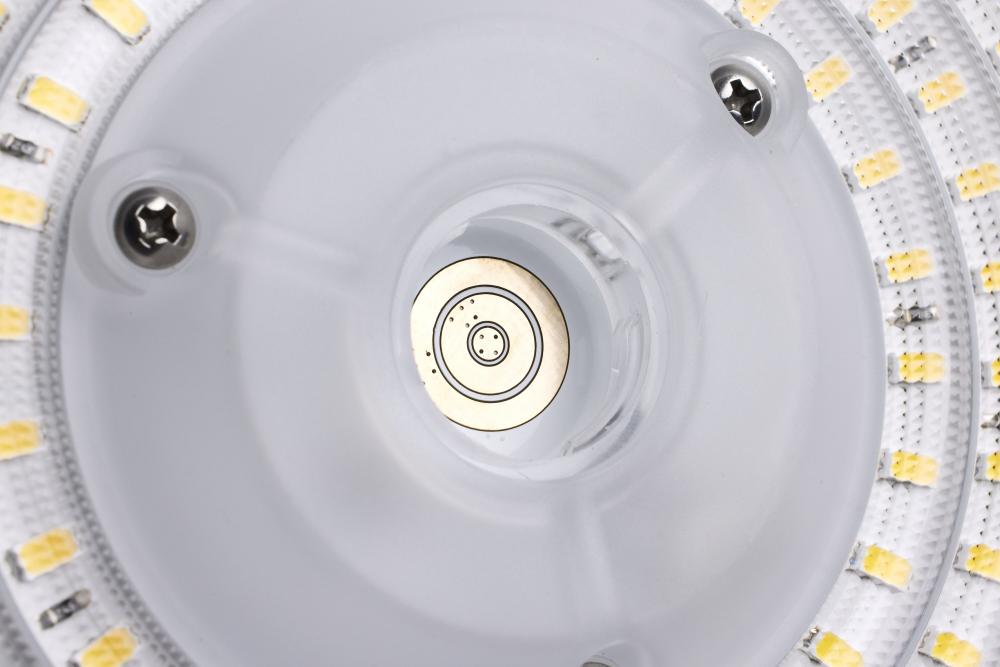

Integrated Sensor Port

Feature 2:

IP65

Feature 3:

6KV Surge Protection

Feature 4:

6 Foot Whip

Feature 5:

90 degree Beam Angle

Feature 6:

50,000 Hours

Feature 7:

5 Year warranty

Finish Family:

White

Has Emergency Battery:

No

HID Equiv:

700W

Impact Rating (IK):

IK08

Incandescent Equivalent:

2000W

Includes:

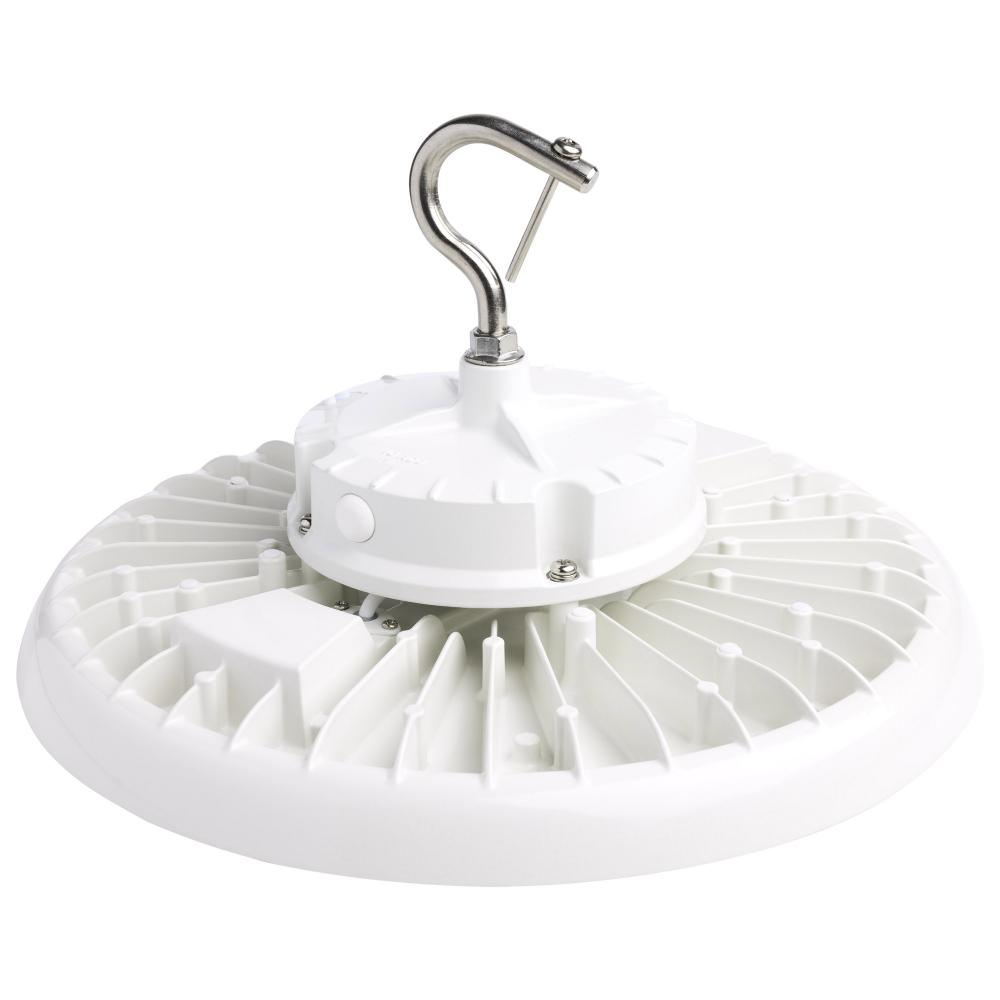

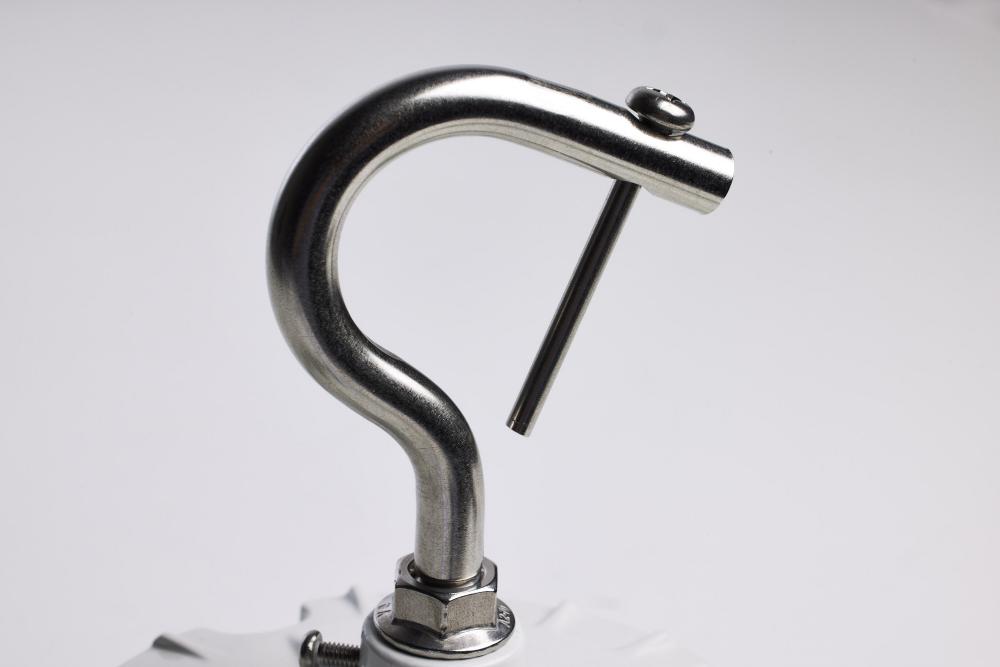

Locking Hanging Hook; 6 Foot Whip

Indoor Outdoor:

Indoor

Installation Notes:

Mounting Height: Up to 35 feet

IOT Enabled:

No

IP Rating:

IP65

JA8 Compliant:

No

Lens Material:

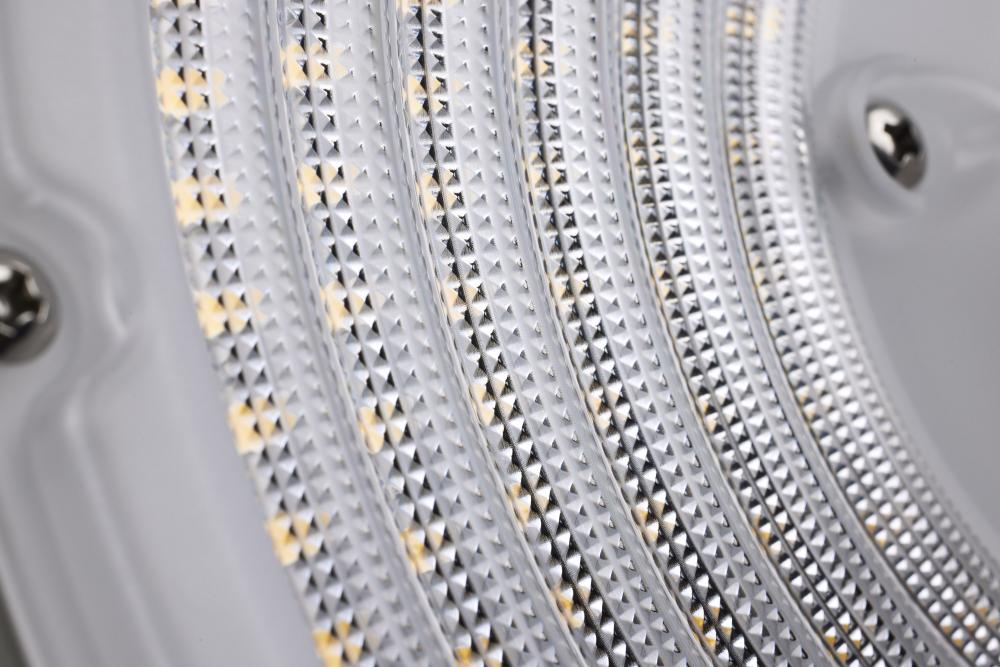

Polycarbonate (PC)

Long Description:

SATCO NUVO's 65-798R2 240-watt, 5000K, white UFO LED High Bay offers superior value and meets the needs of numerous applications. A few add-ons that are available for purchase for this item include a pendant adapter, emergency battery back-up, protecti

Material:

Die-Cast Aluminum

Mounting Procedure:

Pendant Hanging Surface

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-40C (-40F) to +50C (+122F)

Order In Multiples Of:

1

Pack Type:

Brown Box

Photocell:

Optional Add-On

Power Factor:

0.9

Quantity In Pack:

1

R9 Value:

5

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO's 240-watt, 5000K, white UFO LED High Bay offers superior value and meets the needs of numerous applications. A few add-ons that are available for purchase for this item include a pendant adapter, emergency battery back-up, protective wire g

Safety Listing:

cULus - Certified

SDS class:

LED_Fixture

Short Description:

LED UFO HIGHBAY 240W/5000K

Temperature (CCT):

5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Total Harmonic Distortion:

15%

Wattage Selectable:

No

Weight Lb.:

6.42
