2 Foot LED Linear Strip Light; Field Selectable; With Sensor; White Finish : A99RC

Return to Catalog

Part Number: A99RC / Vendor ID #: 81

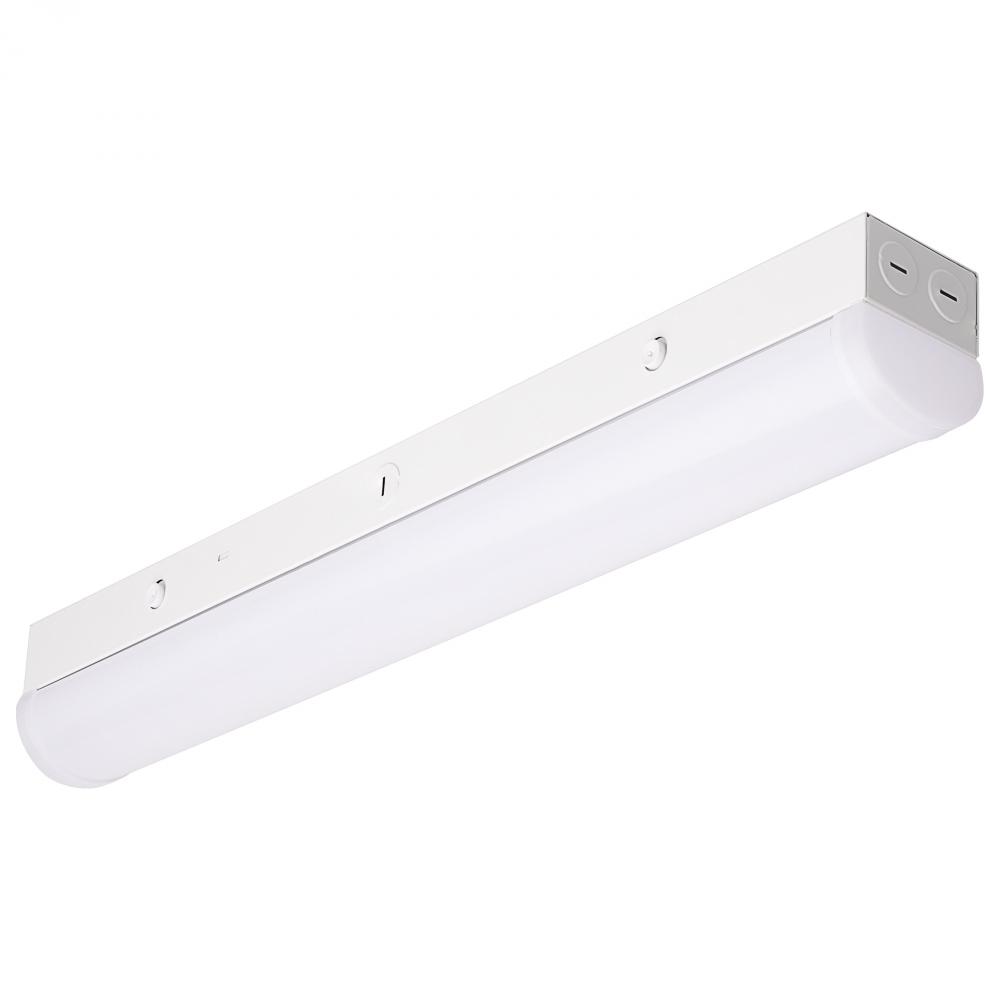

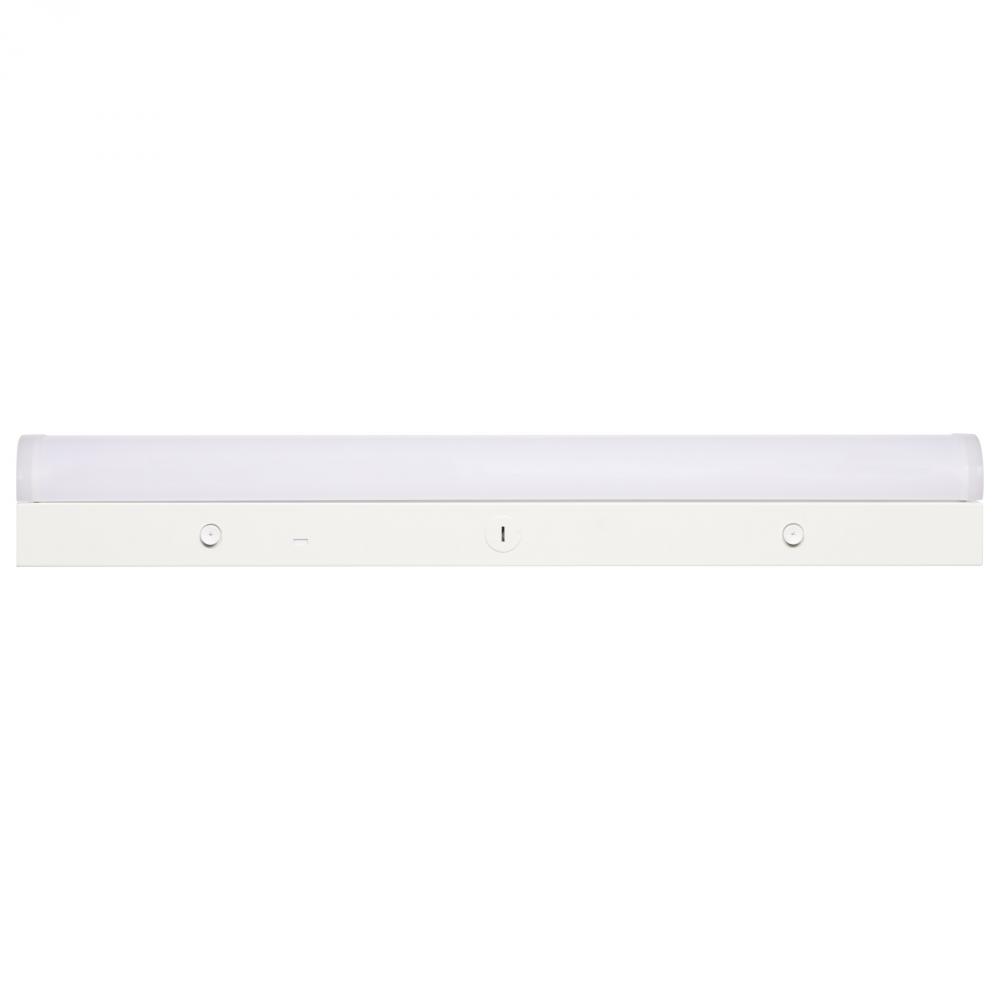

2 Foot LED Linear Strip Light; Field Selectable; With Sensor; White Finish

$88.50

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 264 items available.

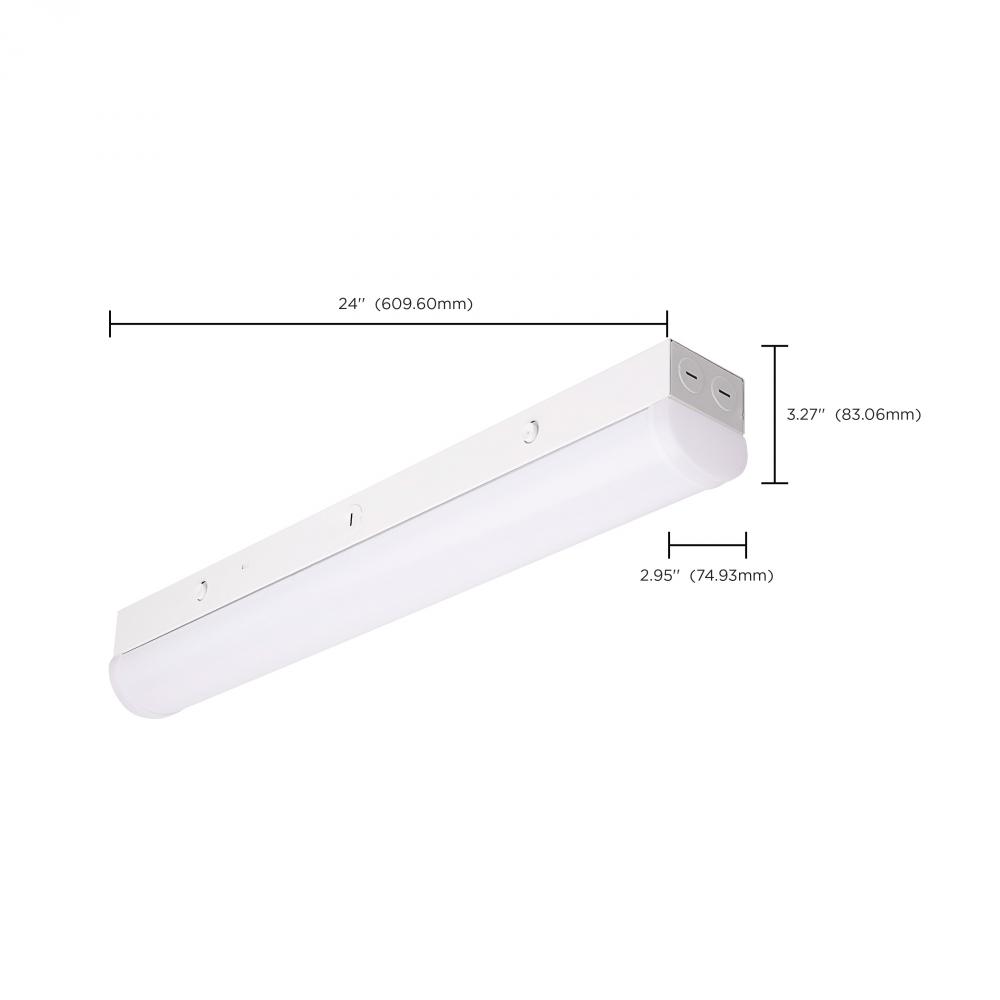

Dimensions

Height: 3.27"

Width: 2.95"

Product Overview

2 Foot LED Linear Strip Light; Field Selectable; With Sensor; White Finish

Standard Information

Category:

Undercabinet

Subcategory:

Strip Lights

Option:

LED

Prop 65

Refinement Options

Category:

Linear Strip

Sub Category:

Strip Fixture

Style:

Utility

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Neutral White to Daylight

Dimmable:

Yes-Dimmable

Each Height:

5.31

Each Length:

26.1

Each Width:

5.2

Length:

Lumens:

1950L-3500L

Tariff Code:

9405.11.6010

Warranty:

5 Year Limited - Fixtures

Amps:

0.125-0.054/0.167-0.072/0.208-0.090A

ANSI Base:

Integrated

BAA Compliant:

Beam Angle:

120

B_U_G_Rating:

B1-U3-G1

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Hardwire

Country Of Origin:

Vietnam

CRI:

80+

Dimmable Down To:

100 to 10 percent

Dimmable Function:

0-10V Dimming Only

DLC Classification:

Premium; Standard

DLC Primary Use:

Stairwell and Passageway Luminaires;Direct Linear Ambient Luminaires

Each Cube:

0.4171

Each Quantity:

Efficacy:

130.00/140.00/135.00 LPW

FCC Compliant:

Yes

Feature 1:

Field Selectable (Wattage and CCT)

Feature 2:

Flicker Free Driver

Feature 3:

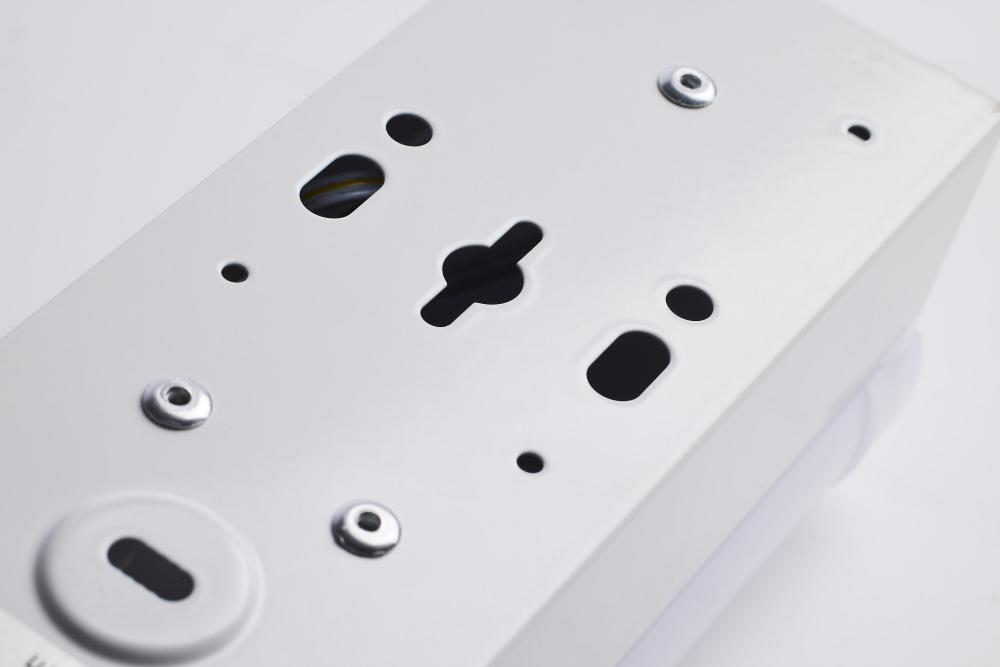

Multiple Mounting Options

Feature 4:

2-Foot, Integrated Microwave Sensor Model

Feature 5:

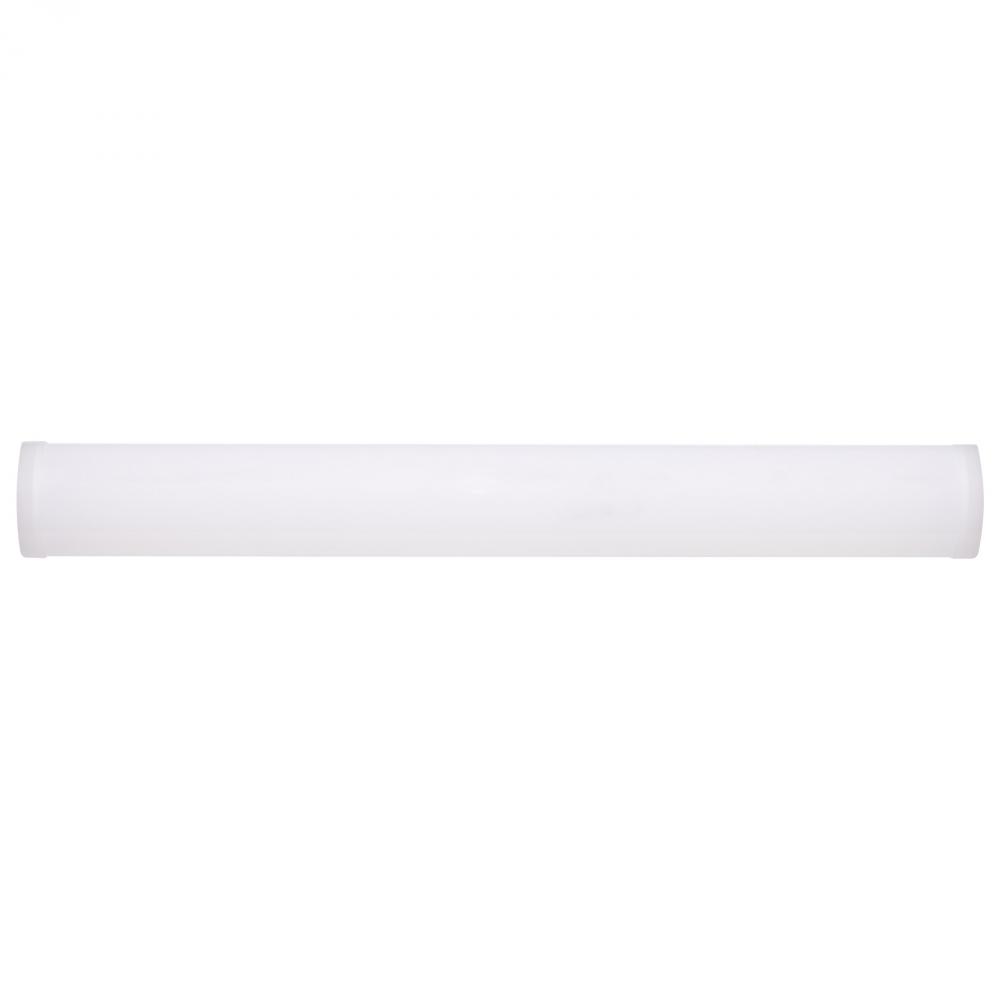

Durable, Polycarbonate Lens

Feature 6:

Damp location rated

Feature 7:

Numerous Accessories Available (Sold Separately)

Feature 8:

5 Year Warranty

Feature 9:

50,000 Hour Functional Life

Finish Family:

White

Flicker Free:

Yes

Has Driver:

Yes

Incandescent Equivalent:

150W-175W

Indoor Outdoor:

Indoor

IP Rating:

IP20

JA8 Compliant:

Lens Finish:

White

Lens Material:

Polycarbonate (PC)

Long Description:

SATCO NUVO's 65-1700R1 2-foot LED Linear Strip Fixture offers adaptable lighting for diverse applications. This field-selectable fixture provides wattage options of 15W, 20W, or 25W and color temperature settings of 3500K, 4000K, or 5000K. With a unive

Material:

Steel

Mounting Diameter:

4.75

Mounting Height:

0.06

Mounting Procedure:

Ceiling/Wall

NSF Approved:

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +60C (+140F)

Order In Multiples Of:

Pack Type:

Box

Photocell:

Bi-Level Microwave Sensor

Power Factor:

0.9

Quantity In Pack:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO offers LED Linear Strip Fixtures in 2, 4, and 8-foot sizes, providing versatile lighting solutions for a range of applications. All fixtures are CCT selectable with 3500K, 4000K, and 5000K options, allowing users to adjust the color temperature

Safety Listing:

cULus - Certified

SDS class:

LED_Fixture

Sensor Type:

Microwave

Short Description:

2' LINEAR STRIP W/SENSOR

Sloped Ceiling Compatible:

Yes

Temperature (CCT):

3500K/4000K/5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

Total Harmonic Distortion:

13.61%

Wattage Selectable:

Yes

Weight Lb.:

1.78
