Product Overview

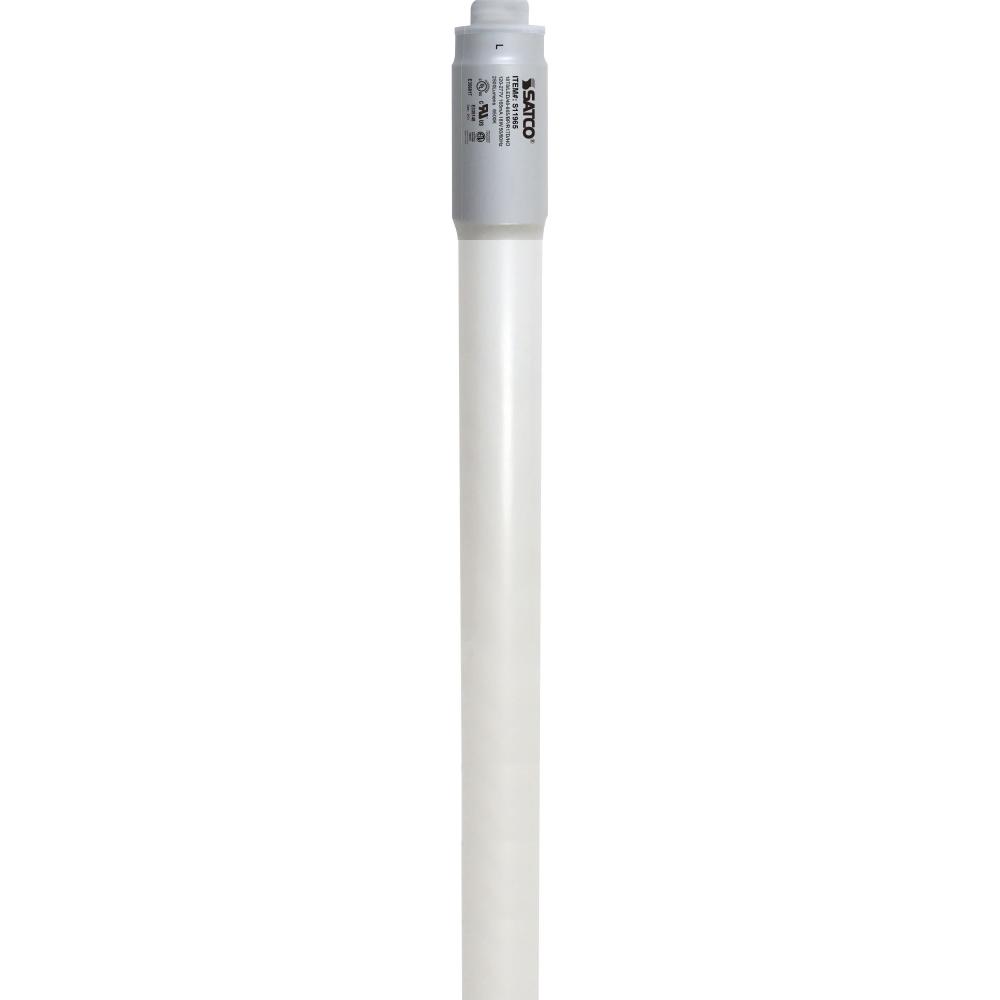

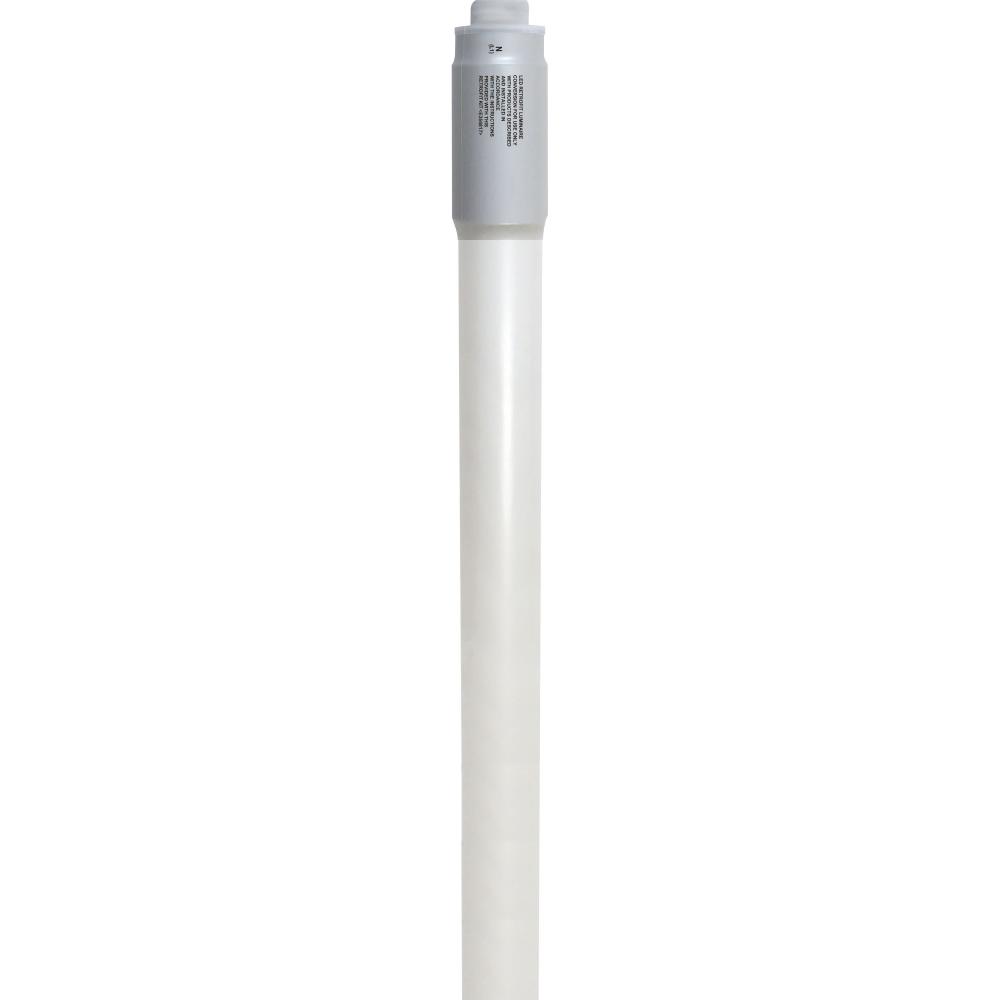

18 Watt T8 LED; 4 Foot; 6500K; Recessed Double Contact base; 50000 Average rated hours; 2500 Lumens; Type B; Ballast Bypass; Double Ended Wiring

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Finish:

White

Style:

Traditional

Lumens:

1601-2600

Kelvin:

6001-6500

Wattage:

18w

Refinement Options

Category:

LED

Sub-Category:

LED T8

Volts:

120V-277V

Bulb Dimmable:

Non-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

6500K

Bulb Shape:

T8

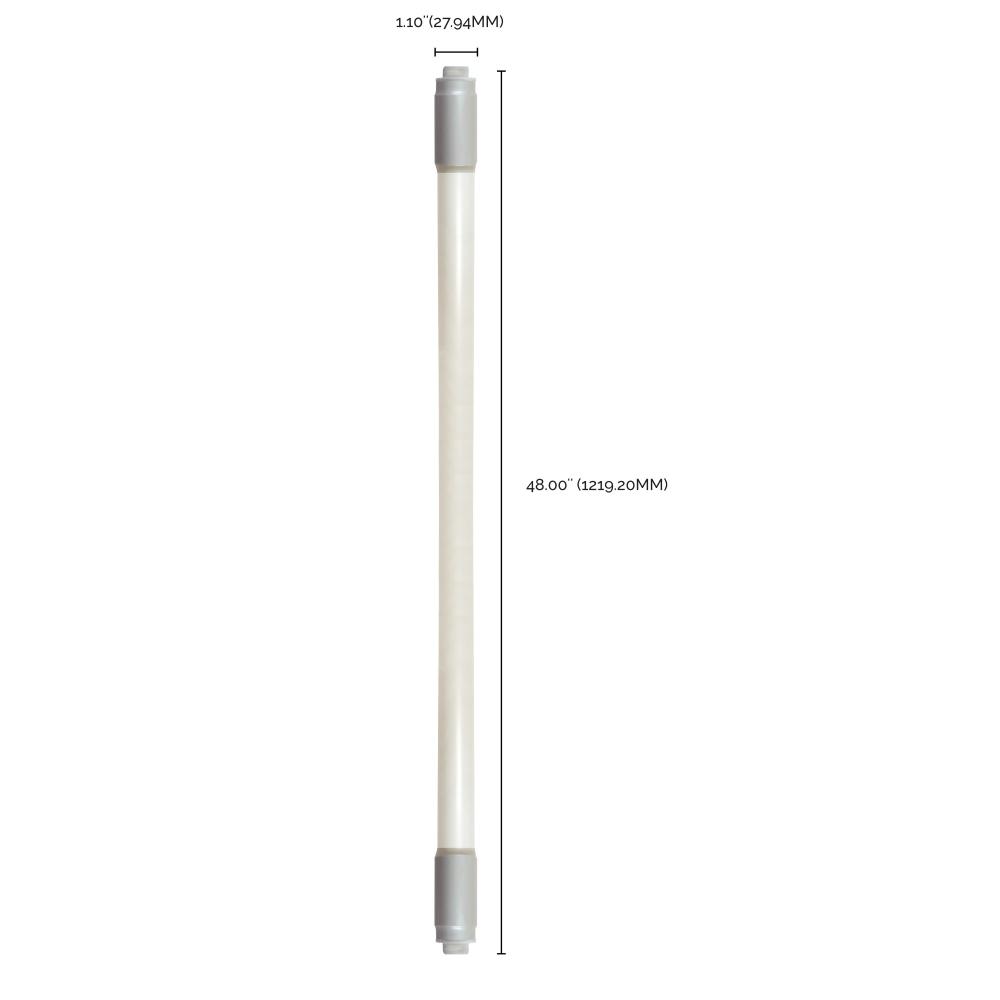

Diameter:

1.1

EA Length:

48

Harmonized Codes:

8539.52.0051

Length:

46

Lumens:

2500L

Shap Carton Width:

1.1

Ship Carton Height:

1.1

Ship Weight:

0.99

Warranty:

5-Years

Weight:

0.54

B.U. G. Rating:

B0-U0-G0

BAA Compliant:

No

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass

Beam Spread:

160

Bulb ANSI Base:

R17d

Bulb Base:

Recessed Double Contact HO/VHO

Bulb Finish:

White

Burning Position:

Universal

Carton Cubic Feet:

0.0336

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Daylight

Country Of Origin:

China

CRI:

80+

DLC Approved:

No

Efficacy:

138.89 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Enclosed Rated Lamp

FCC Compliant:

Yes

Feature 1:

Shatterproof PET coated

Feature 2:

All-glass tube

Feature 3:

Double-ended wiring

Feature 4:

ETL listed - conforms to NSF standards

Feature 5:

Long life -- 50000 hours

Feature 6:

Five year warranty

Flourescent Equivalent:

63W

Housing Color:

White

Incandescent Equivalent:

90W

Indoor Outdoor:

Indoor;Outdoor

Installation Notes:

Not for use in vapor tight fixtures.

IOT Enabled:

No

IP Rating:

IP20

JA8 Compliant:

No

Lamp Ballast Type A/B/C:

Type B

Lamp End Type:

Double Ended

Lamp Filament:

LED

Lens Finish:

White

Lens Material:

Glass

Location Rating:

Damp

Long Description:

Satco's S11965 18-watt, 4 foot, LED T8 bulb is an ideal lighting solution for a variety of applications. This energy saving, low maintenance lamp has a 160 degree beam spread and high lumens count for superior illumination. This frosted bulb is versati

Material:

Glass

Nominal Length:

48

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

10

Pack Type:

Egg Crate

Power Factor:

0.9

Quantity In Pack:

1

RoHS Compliant:

Yes

Romance Copy:

Satco's 18-watt, 4 foot, LED T8 bulb is an ideal lighting solution for a variety of applications. This energy saving, low maintenance lamp has a 160 degree beam spread and high lumens count for superior illumination. This frosted bulb is versatile and

SDS class:

LED_Lamp

Shatter Proof Text:

PET Coated

Short Description:

18T8/LED/48-865/BP/R17D/HO

Style:

Utility

Surge Protection:

Built-in-surge protection - 0.7KV

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Total Harmonic Distortion:

25%

Tube Guard Use:

Yes

Wattage Selectable:

No

Watts:

18W
