13 Watt T8 LED; Medium bi-pin base; 3500K; 50000 Hours; 1800 Lumens; Type A/B; Ballast Dependant or
$15.50
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
Item appears to be in stock and ready to ship
Dimensions
Width: 1.00"
Product Overview

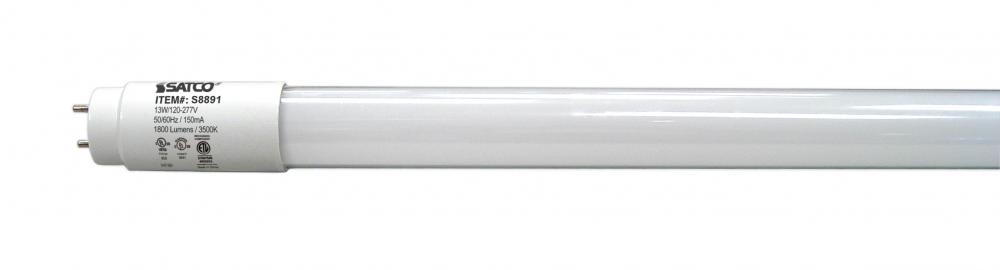

13 Watt T8 LED; Medium bi-pin base; 3500K; 50000 Hours; 1800 Lumens; Type A/B; Ballast Dependant or Ballast Bypass; Single or Double Ended Wiring
Standard Information
Category:
Light Bulbs
Subcategory:
LED Bulbs
Finish:
White
Style:
Traditional
Lumens:
1601-2600
Kelvin:
3501-4000
Wattage:
13w
Refinement Options
Category:
LED
Sub-Category:
LED T8
Volts:
120V-277V
Bulb Dimmable:
Yes-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
3500K
Bulb Shape:
T8
Diameter:
1
EA Length:
48
Harmonized Codes:
8539.52.0051
Length:
47.78
Lumens:
1900L
Shap Carton Width:
1.1
Ship Carton Height:
1.1
Ship Weight:
0.5
Warranty:
5-Years
Weight:
0.45
BAA Compliant:
No
Ballast Bypass Direct:
Dual
Ballasting Requirements:
Ballast required (Type A) or Ballast Bypass (Type B)
Beam Spread:
180
Bulb ANSI Base:
G13
Bulb Base:
Medium Bi Pin
Bulb Finish:
Frost
Burning Position:
Universal
Carton Cubic Feet:
0.0336
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Neutral White
Country Of Origin:
Vietnam
CRI:
80+
Dimmable Down To:
100 to 20 percent
Dimmable Function:
Only in Type A mode; Check Ballast MFG for Dimmer Compatibility
DLC Approved:
Yes
DLC Classification:
Standard
DLC ID:
PLGF1IVR6PF5
DLC Primary Use:
Dual Mode Internal Driver (UL Type A and Type B)
Efficacy:
138.46 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Flourescent Equivalent:
28W/32W
Has Camera:
No
Has Emergency Battery:
No
Housing Color:
White
Incandescent Equivalent:
50W
Installation Notes:
Not for use in vapor tight fixtures.
IOT Enabled:
No
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type A/B
Lamp End Type:
Single Ended;Double Ended
Lamp Filament:
LED
Lens:
Yes
Lens Finish:
Frost
Location Rating:
Damp
Material:
Glass
Nominal Length:
48
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
25
Pack Type:
Sleeve
Power Factor:
0.96
Quantity In Pack:
1
RoHS Compliant:
Yes
SDS class:
LED_Lamp
Shatter Proof Text:
PET Coated
Short Description:
13T8/LED/48-835/DUAL/BP-DR
Specification Notes:
Ballast Compatible - bare lamp is 12W; Ballast Bypass - 13W.; Protection from arcing- Power must be turned off prior to installing lamps. Sockets must be in good working order, not broken, cracked or electrically compromised. If arcing occurs at the lamp p
