Product Overview

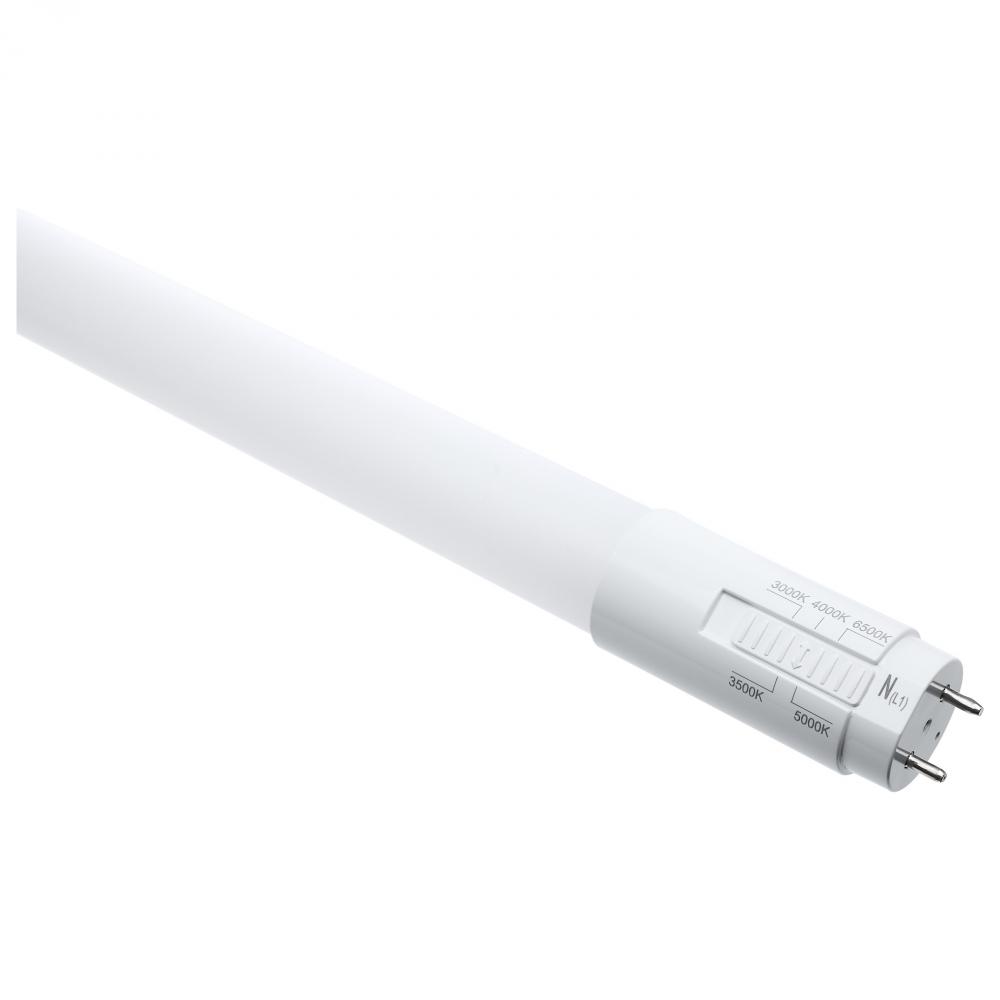

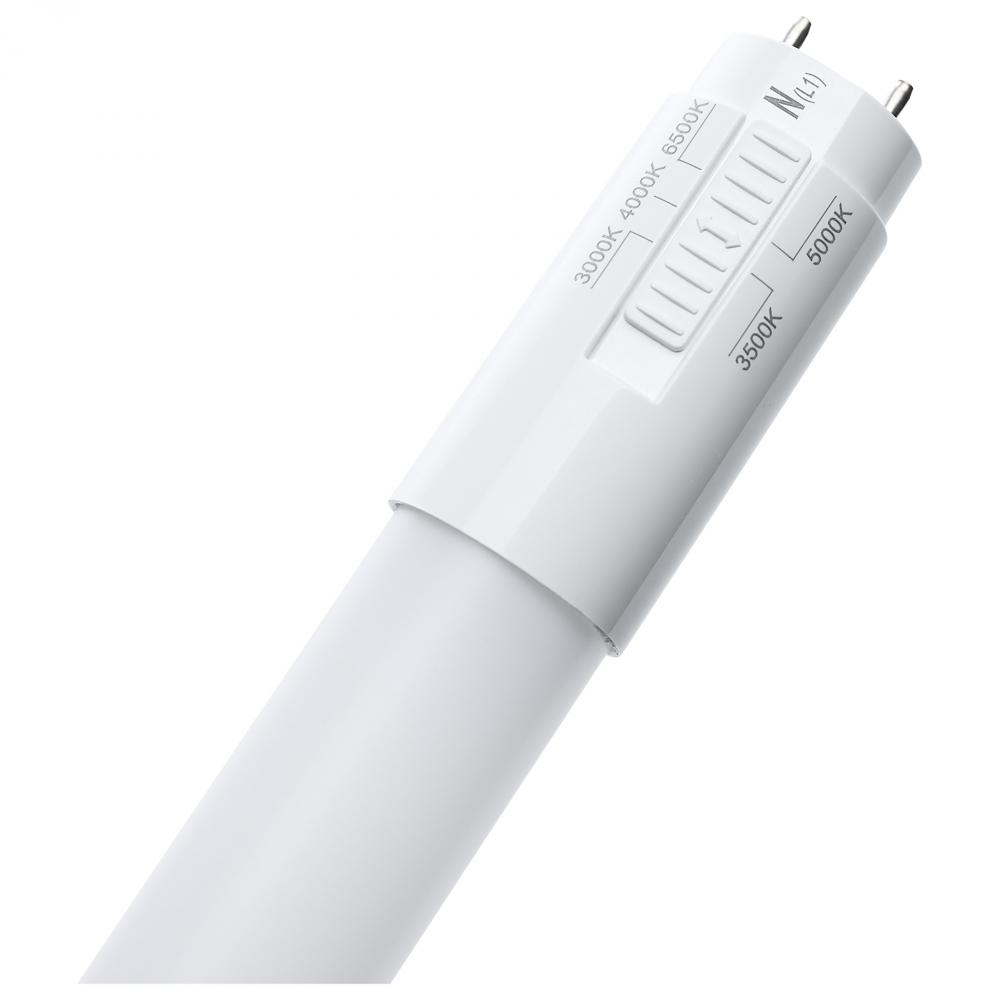

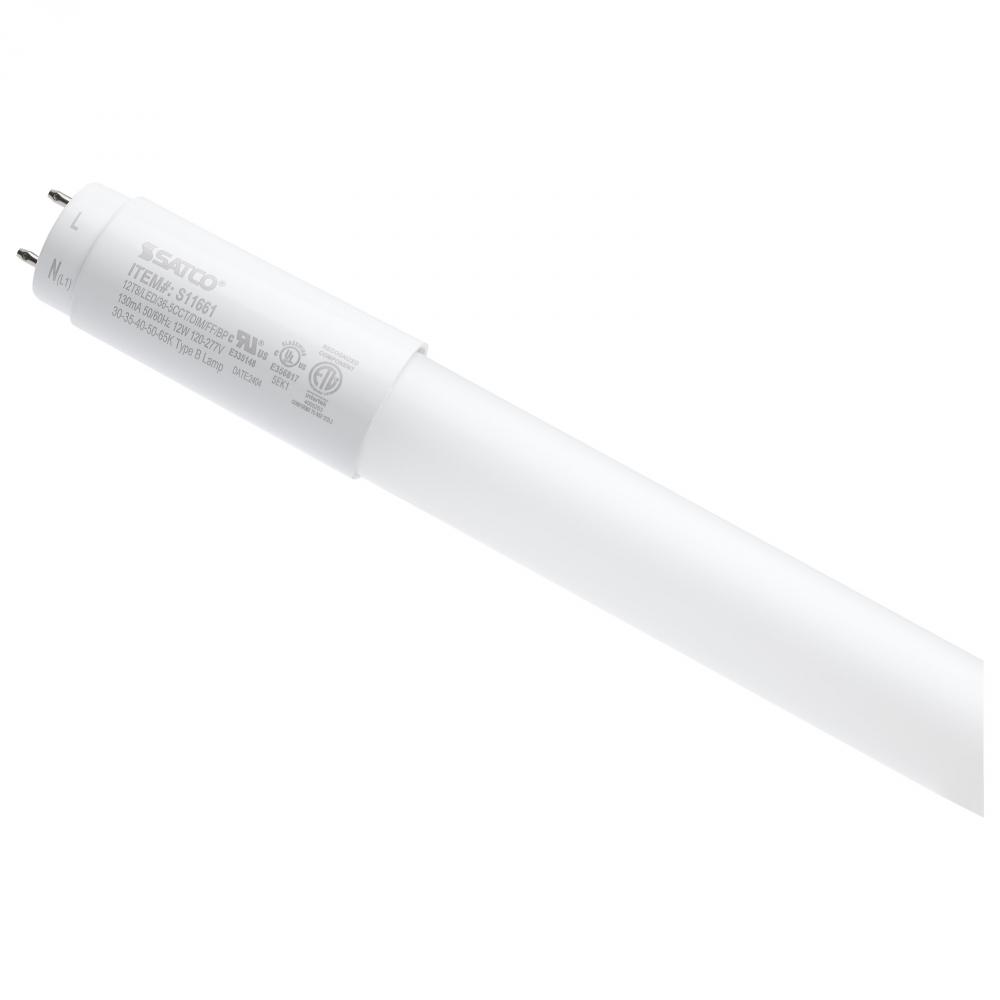

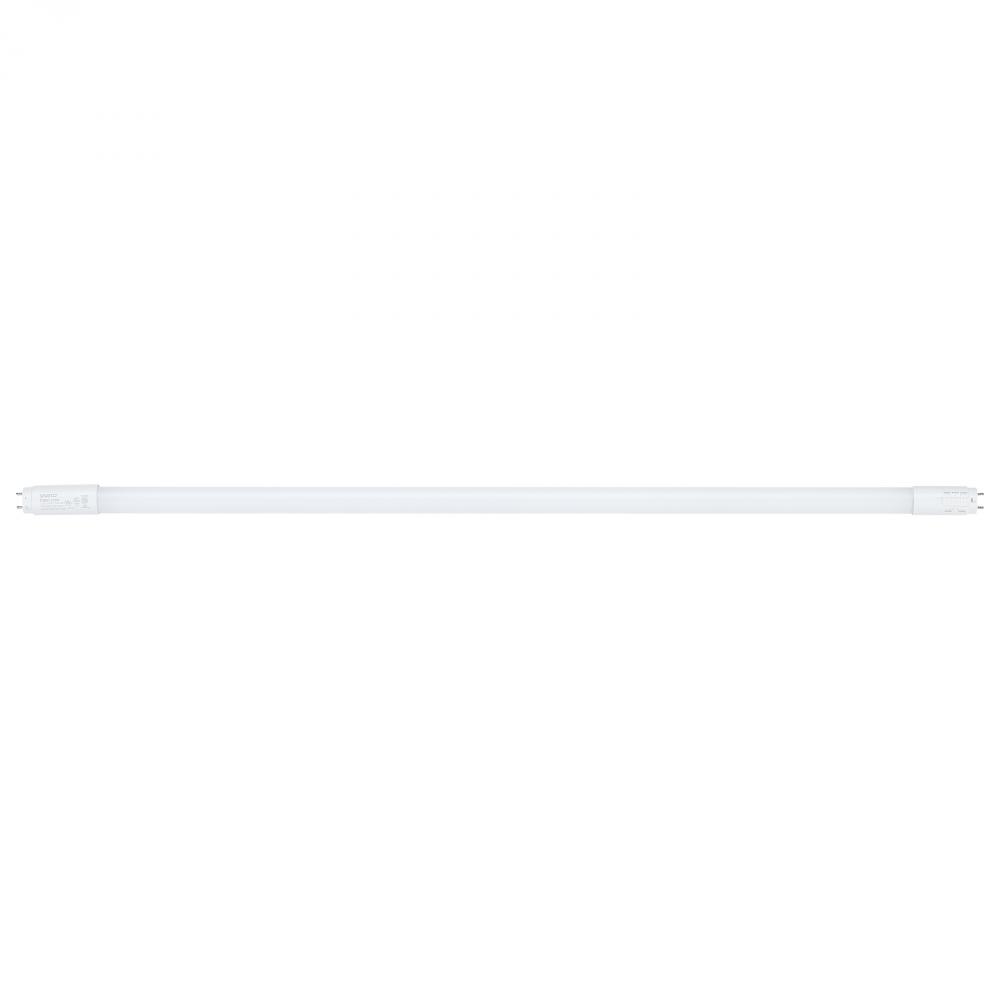

12 Watt T8 LED; 36 Inch; 30K/35K/40K/50K/65K CCT Selectable; Low Optical Flicker (less than 5%); Medium Bi Pin Base; Type B Ballast Bypass; 120-277 Volt; Frost Finish

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Finish:

Frosted

Refinement Options

Category:

LED

Sub-Category:

LED T8

Volts:

120V-277V

Bulb Dimmable:

Yes-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

3000K/3500K/4000K/5000K/6500K

Bulb Shape:

T8

Diameter:

1

EA Length:

36

Harmonized Codes:

8539.52.0051

Length:

35.24

Lumens:

1450L/1500L/1550L/1550L/1500L

Shap Carton Width:

1.18

Ship Carton Height:

1.18

Ship Weight:

0.34

Warranty:

5-Years

Weight:

0.31

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required

Beam Spread:

160

Bulb ANSI Base:

G13

Bulb Base:

Medium Bi Pin

Bulb Finish:

Frost

Carton Cubic Feet:

0.029

Cartons Per Unit:

1

CCT Selectable:

Yes

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Soft White to Daylight

Country Of Origin:

Vietnam

CRI:

80+

Dimmable Down To:

100 to 10 percent

Dimming Type:

Reverse Phase or Phase Selectable

DLC Approved:

Yes

DLC Classification:

Standard

DLC ID:

S-L7WLBJ

DLC Primary Use:

Internal Driver/Line Voltage (UL Type B) Lamps

Efficacy:

120.83/125.00/129.17 LPW

Enclosed Fixture Use:

Yes

FCC Compliant:

Yes

Feature 1:

3-ft

Feature 10:

5-CCT Selectable

Feature 2:

12W

Feature 3:

T8

Feature 4:

Medium Bi-Pin Base

Feature 5:

PET Coated Shatterproof Glass

Feature 6:

120-277V Range Voltage

Feature 7:

Dimmable

Feature 8:

Type B Ballast Bypass

Feature 9:

Low Optical Flicker - Less than 2-percent flicker

Flicker Free:

Yes

Flourescent Equivalent:

25W

Has Camera:

No

Has Emergency Battery:

No

Housing Color:

White

Indoor Outdoor:

Indoor

Installation Notes:

Not for use in vapor tight fixtures.

IOT Enabled:

No

JA8 Compliant:

No

Lamp Ballast Type A/B/C:

Type B

Lamp End Type:

Double Ended;Single Ended

Lamp Filament:

LED

Location Rating:

Damp

Long Description:

SATCO NUVO's S11661 LED 3-foot, 12W Flicker-Free Lamps offer smooth, continuous light with less than 2-percent flicker. Ideal for use in offices, retail applications, and safe for use in commercial kitchens with the PET coated shatterproof tube. Extend

Material:

Glass

Nominal Length:

36

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

25

Pack Type:

Sleeve

Power Factor:

0.9

Quantity In Pack:

1

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO's LED Flicker-Free Lamps offer smooth, continuous light with less than 2-percent flicker. Ideal for use in offices, retail applications, and safe for use in commercial kitchens with the PET coated shatterproof tube. Extending the versatility

SDS class:

LED_Lamp

Shatter Proof Text:

PET Coated

Short Description:

12T8/LED/36-5CCT/DIM/LF/BP

Style:

Utility

Surge Protection:

Built-in-surge protection - 0.7KV

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Total Harmonic Distortion:

<20%

Wattage Selectable:

No

Watts:

12W
